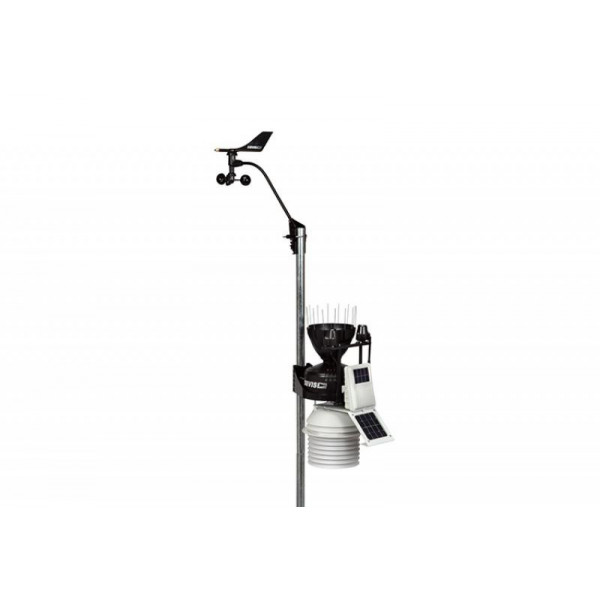

Wireless Vantage Pro2™ Plus ISS with 24-Hr Fan-Aspirated Radiation Shield

Wireless Vantage Pro2™ Plus ISS with 24-Hr Fan-Aspirated Radiation Shield

€1,139.00 (tax incl.) (€949.17 VAT excl.)
Delivery in 1 to 5 days

Sensor Suite for Vantage Pro 2 Plus Wireless Weather Station with Active Fan. Includes all outdoor sensors for the Vantage Pro 2 6163EU weather station.

Reference
6328OV
Last items in stock (1 Item)

Vantage Pro 2 Plus wireless sensor suite with 24-hour active ventilation shelter. The "Plus" version includes the Pyranometer and UV sensor and holder. This sensor suite equips the 6163EU station, which is compatible with the Vantage Pro2 EU, UK, and FR references.

The ISS is very rugged and can be mounted on a mast (tube) or wooden pole. A dual sensor for measuring outdoor temperature and humidity is placed in a standard radiation shelter. The aerodynamic rain gauge is equipped with a tilting bucket to measure precipitation and bird spikes. The anemometer - wind vane can be detached from the ISS to be installed on a roof for example thanks to its 12 meters cable. The pyranometer allows the measurement of the global solar radiation in W/m² but also the calculation of the evapotranspiration (ETP) thanks to the other sensors of the weather station. The UV sensor allows the measurement of the UV index and the UV dose.

The 6328OV sensor suite is delivered with:

  • An outdoor sensor suite (ISS).
  • A pyranometer, a UV sensor and their holder.
  • An anemometer - wind vane with 12 metres of cable.
  • A fixing kit.
  • An active ventilation system operating 24 hours a day
  • An instruction manual

ATTENTION: You are only buying the sensor suite, the console is not sold with the reference 6828OV.

Note on warranty: there is no warranty for the batteries of the active ventilation.

Manual ISS (FR/DE/ES)

Manual in french/spanish/german

Download (2.17MB)

Manuel ISS VP2 (EN)

Manuel en anglais

Download (3.08MB)
Miscellaneous
Size
378 x 327 x 594 mm
Weight
7.5 kg
Warranty
2 ans
Radio frequency
868.0 - 868.6 MHz FHSS, inférieur à 8mW
Wireless range
300m à vue, 60 à 120m avec des obstacles
Wind
Units of measurement
mph, km/h, m/s, Nœud
Resolution
1 mph, 1 km/h, 0.5 m/s, ou 1 Nœud
Accuracy
±3 km/h
Measuring range
3 à 290 km/h
Measurement frequency
2.5 à 3 secondes
Wiring
12m de longueur, max recommandé 165m
Measurement principle
Godets à vent, capteur à effet Hall
Wind direction
Resolution
16 points (22,5°) sur la rose des vents, 1° à affichage numérique
Accuracy
±3°
Measuring range
0 à 360°
Measurement frequency
2.5 à 3 secondes
Measurement principle
Girouette avec potentiomètre
UV Index
Resolution
0.1
Accuracy
± 5% de l'échelle totale
Measuring range
Indice 0 à 16
Measurement frequency
50 sec à 1 min (5 minutes lorsqu'il fait sombre)
Drift
jusqu'à ± 2% par an
Outside temperature
Units of measurement
°C ou °F
Resolution
0.1
Accuracy
±0.3°C
Measuring range
-40°C à 65°C
Measurement frequency
10 à 12 secondes
Measurement principle
Diode à jonction PN de silicone
Windchill
Resolution
1
Accuracy
±1
Measurement frequency
10 à 12 secondes
Measurement principle
Calcul, formule de Osczevski (1995)
Integrated Sensor Suite (ISS)
Composition
plastiques ABS et ASA résistants aux UV
Measure
Temperature ; Humidity ; Wind speed ; Wind direction ; Rainfall ; UV ; Solar radiation ; Windchill ; Wind gusts
Power supply
panneau solaire, accumulateur 10F, pile de secours
Power supply autonomy
8 mois sans ensoleillement, plus de 2 ans en fonction de l'ensoleillement
Operating temperature
-40 à 65°C
Current consumption
5 mA (en moyenne) de 4 à 6 VDC pour l'ISS seulement. 10 mA en moyenne entre la console et l'ISS
Backup power supply
pile Lithium 3V CR123 (non fournie)
UV radiation dose
Units of measurement
MEDs
Resolution
0.1 MEDs à 19.9 MEDs, tous les 1 MED au dessus de 19.9 MEDS
Accuracy
±5% pour le total journalier
Measurement frequency
50 sec à 1 min
Drift
jusqu'à ± 2% par an
Outdoor humidity
Units of measurement
% HR
Resolution
1%
Accuracy
±2%
Measuring range
1 à 100% RH
Measurement frequency
50 secondes à 1 minute
Measurement principle
Condensateur à film
Drift
inférieur à 0.25% par an
Solar radiation
Units of measurement
W/m²
Resolution
1 W/m²
Accuracy
± 5% de l'échelle totale
Measuring range
0 à 1800 W/m2
Drift
jusqu'à ± 2% par an
Rainfall
Units of measurement
mm ou pouces
Resolution
0.2 mm ou 0.01in
Accuracy
Pour les intensités de pluie jusqu'à 100 mm/h : ±3% du total ou +0.25 mm au plus
Measurement frequency
20 à 24 secondes
Measurement principle
Auget basculant
Rain receiving surface
214 cm2
Rainfall rate
Units of measurement
mm/h ou in/h
Resolution
0.1 mm ou 0.01 in/h
Accuracy
±5% pour les intensités inférieures à 250 mm/h
Measuring range
0 à 762 mm/h
Measurement frequency
20 à 24 secondes
Evapotranspiration
Units of measurement
mm ou pouces
Resolution
0.1 mm ou 0.01in
Accuracy
0.25 mm ou ±5%
Measuring range
Journalier jusqu'à 832,2 mm, mensuel et annuel jusqu'à 1999.9 mm
Measurement frequency
1 heure
Measurement principle
Equation de Penman modifiée, telle que mise en œuvre par CIMIS (California Irrigation Management Information System)
Dew point
Units of measurement
°C ou °F
Resolution
1
Accuracy
±1.5°C
Measuring range
-76° à 54°C
Measurement frequency
10 à 12 secondes
Measurement principle
L'équation de l'OMM à l'égard de la saturation de l'air humide sur l'eau
