Sensor Suite for Vantage Vue

€415.00 (tax incl.) (€345.83 VAT excl.)

Delivery in 1 to 5 days in Europa

Davis Instruments Vantage Vue Weather Station Sensor Suite. Includes all outdoor sensors for the Vantage Vue weather station without the receiver console.

Reference

6357OV

Available (16 Items)

Based on 2 reviews

Show reviews

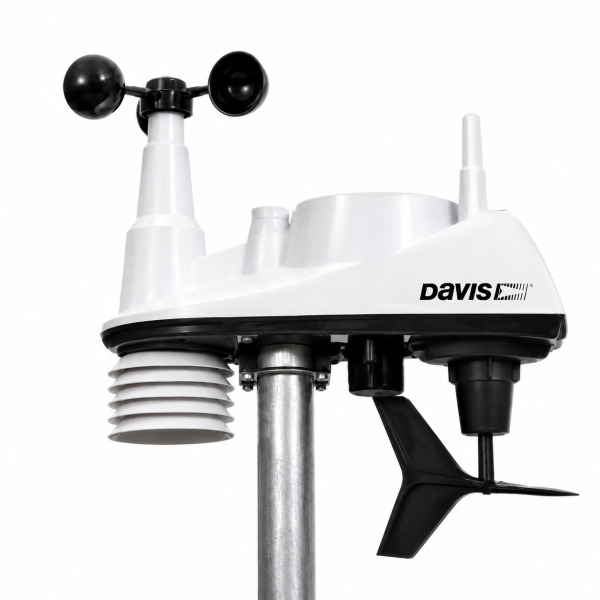

Sensor Suite (ISS) for the Davis Instruments Vantage Vue weather station. The ISS includes a dual thermometer/hygrometer sensor in a radiation shield, a rain gauge with a tipping bucket system, an anemometer, and a wind vane. All these sensors are combined in a single unit.

The sensor suite is delivered with a fixing kit.

Manual ISS Vantage Vue (EN)

Download (1.4MB)

Show attestation

Reviews subject to control

1★

2★

3★

4★

5★

10/10

Based on 2 reviews

Jean Marc L.
Published Dec 06, 2024 at 08:48 pm (Order date: Nov 28, 2024)

5

Same impeccable (Translated review)
Alexis D.
Published Jun 24, 2023 at 11:18 am (Order date: Jun 05, 2023)

5

Everything works perfectly. Quick installation. (Translated review)

Data sheet

Miscellaneous

Size: 45.7 x 17.8 x 38.4 cm
Weight: 2.04 kg
Warranty: 2 ans
Radio frequency: 868.0 - 868.6 MHz FHSS, inférieur à 8mW
Wireless range: 300m à vue, 60 à 120m avec des obstacles

Wind

Units of measurement: mph, km/h, m/s, Nœud
Resolution: 1 mph, 1 km/h, 0.5 m/s, ou 1 Nœud
Accuracy: ±3 km/h
Measuring range: 3 à 322 km/h
Measurement frequency: 2.5 à 3 secondes
Measurement principle: Godets à vent, capteur à effet Hall

Wind direction

Resolution: 16 points (22,5°) sur la rose des vents, 1° à affichage numérique
Accuracy: ±3°
Measuring range: 0 à 360°
Measurement frequency: 2.5 à 3 secondes
Measurement principle: Girouette avec potentiomètre

Atmospheric pressure

Units of measurement: in Hg, mm Hg, hPa/mb
Resolution: 0.01in Hg, 0.1 mm Hg, 0.1 hPa/mb
Accuracy: ±1.0 hPa
Measuring range: 540 à 1100 hPa
Measurement frequency: 1 minute

Outside temperature

Units of measurement: °C ou °F
Resolution: 0.1
Accuracy: ±0.5°C
Measuring range: -40°C à 65°C
Measurement frequency: 10 à 12 secondes
Measurement principle: PN junction silicon diode

Windchill

Resolution: 1
Accuracy: ±1
Measurement frequency: 10 à 12 secondes
Measurement principle: Calcul, formule de Osczevski (1995)

Integrated Sensor Suite (ISS)

Composition: plastiques ABS et ASA résistants aux UV
Measure: Temperature ; Humidity ; Wind speed ; Wind direction ; Rainfall ; Windchill ; Wind gusts
Power supply: panneau solaire, accumulateur 10F, pile de secours
Power supply autonomy: 8 mois sans ensoleillement, plus de 2 ans en fonction de l'ensoleillement
Operating temperature: -40 à 65°C
Current consumption: 0.20 mA (moyenne), 30 mA (pic) à 3.3 VDC
Backup power supply: pile Lithium 3V CR123 (non fournie)

Outdoor humidity

Units of measurement: % HR
Resolution: 1%
Accuracy: ±2%
Measuring range: 1 à 100% RH
Measurement frequency: 50 secondes à 1 minute
Measurement principle: Condensateur à film
Drift: inférieur à 0.25% par an

Rainfall

Units of measurement: mm ou pouces
Resolution: 0.2 mm ou 0.01in
Accuracy: Pour les intensités de pluie jusqu'à 250 mm/h : ±4% du total ou ±0.2 mm au plus
Measurement frequency: 20 à 24 secondes
Measurement principle: Auget basculant
Rain receiving surface: 116 cm2

Rainfall rate

Units of measurement: mm/h ou in/h
Resolution: 0.1 mm ou 0.01 in/h
Accuracy: ±5% pour les intensités inférieures à 250 mm/h
Measuring range: 0 à 762 mm/h
Measurement frequency: 20 à 24 secondes

Dew point

Units of measurement: °C ou °F
Resolution: 1
Accuracy: ±1.5°C
Measuring range: -76° à 54°C
Measurement frequency: 10 à 12 secondes
Measurement principle: L'équation de l'OMM à l'égard de la saturation de l'air humide sur l'eau
