Sensor Suite for cabled Vantage Pro 2 Plus - Davis Instruments
€1,249.00
(tax incl.)
(€1,040.83 VAT excl.)
Delivery in 1 to 5 days in Europa
Sensor suite for the Davis Instruments Vantage Pro 2 Plus wired weather station. Includes the complete set of outdoor sensors for the Vantage Pro 2 wired weather station (models 6162CEU—older version—or 6160CEU). Model equipped with solar sensors (pyranometer and UV sensor). The pyranometer also enables the calculation of evapotranspiration (ETP). Wired version – supplied without tripod.
Davis Instruments Vantage Pro 2 Plus Wired Weather Station Sensor Suite for the 6162CEU weather station and is compatible with Vantage Pro2 EU, UK, FR. The link between the outdoor sensors and the console is via a 30 m (98 ft) RJ11 cable.

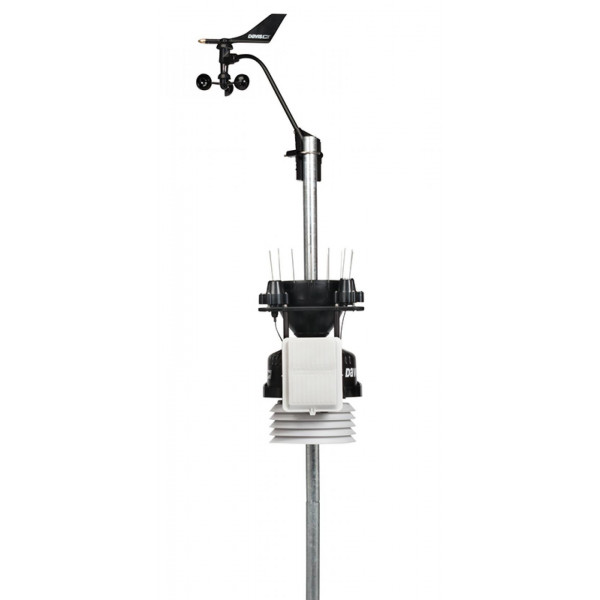

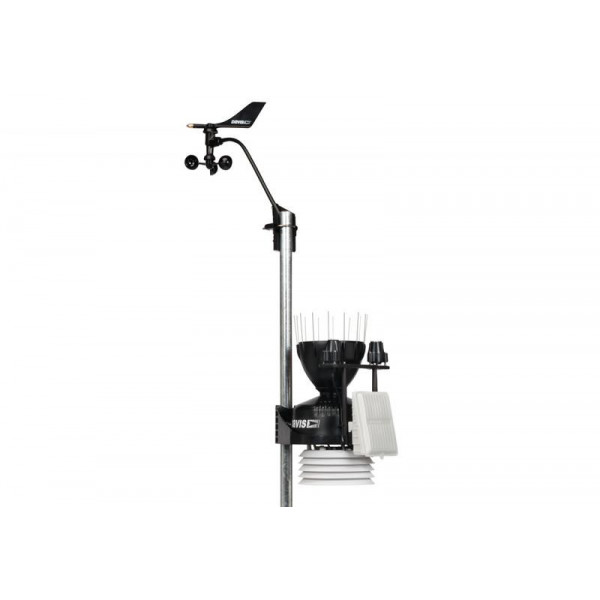

The ISS is very robust and can be mounted on a mast (tube) or a wooden pole. A dual sensor for measuring outdoor temperature and humidity is placed in a standardised radiation shelter. The rain gauge is equipped with a 2-trough tipping bucket system for measuring rainfall and bird spikes. The wind vane anemometer can be detached from the ISS and installed on a roof, for example, thanks to its 12 metre cable.

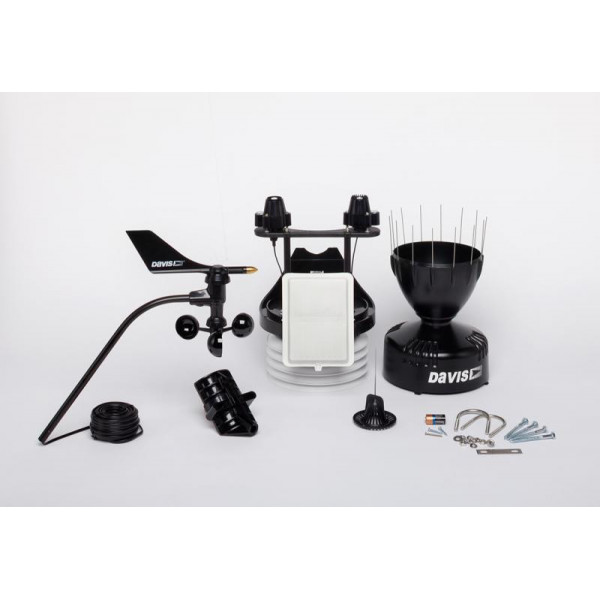

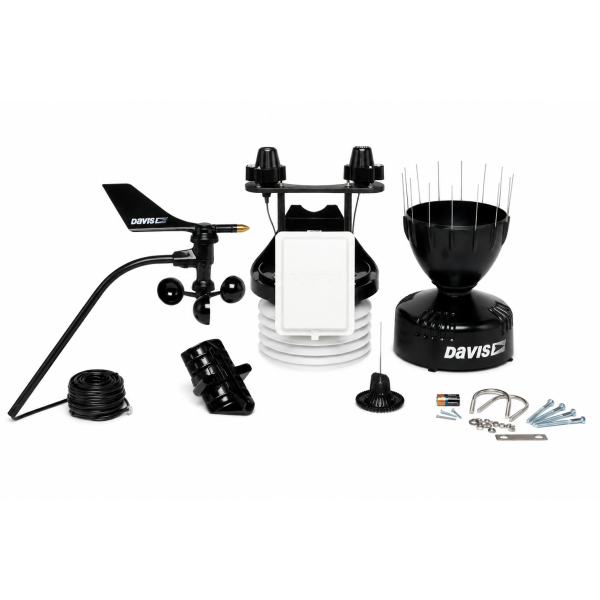

The 6327C sensor suite is delivered with:
- A set of outdoor sensors (rain gauge and shielded temperature/humidity sensor with ISS board)
- A 30 m cable for connection to a console
- Pyranometer and UV sensor with their mounting bracket
- An anemometer/wind vane with 12 meters of cable
- A mounting kit
ATTENTION: You are only buying the sensor suite, the console is not sold with the reference 6827C.
- Miscellaneous
-
- Size
- 445 x 264 x 406 mm
- Weight
- 5.0 kg
- Warranty
- 2 ans
- Radio frequency
- 868.0 - 868.6 MHz FHSS, inférieur à 8mW
- Wireless range
- 300m à vue, 60 à 120m avec des obstacles
- Wind
-
- Units of measurement
- mph, km/h, m/s, Nœud
- Resolution
- 1 mph, 1 km/h, 0.5 m/s, ou 1 Nœud
- Accuracy
- ±3 km/h
- Measuring range
- 3 à 290 km/h
- Measurement frequency
- 2.5 à 3 secondes
- Wiring
- 12m de longueur, max recommandé 165m
- Measurement principle
- Godets à vent, capteur à effet Hall
- Wind direction
-
- Resolution
- 16 points (22,5°) sur la rose des vents, 1° à affichage numérique
- Accuracy
- ±3°
- Measuring range
- 0 à 360°
- Measurement frequency
- 2.5 à 3 secondes
- Measurement principle
- Girouette avec potentiomètre
- UV Index
-
- Resolution
- 0.1
- Accuracy
- ± 5% de l'échelle totale
- Measuring range
- Indice 0 à 16
- Measurement frequency
- 50 sec à 1 min (5 minutes lorsqu'il fait sombre)
- Drift
- jusqu'à ± 2% par an
- Outside temperature
-
- Units of measurement
- °C ou °F
- Resolution
- 0.1
- Accuracy
- ±0.3°C
- Measuring range
- -40°C à 65°C
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- PN junction silicon diode
- Windchill
-
- Resolution
- 1
- Accuracy
- ±1
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- Calcul, formule de Osczevski (1995)
- Integrated Sensor Suite (ISS)
-
- Composition
- plastiques ABS et ASA résistants aux UV
- Measure
- Wind speed ; Wind direction ; Rainfall ; UV ; Solar radiation ; Windchill ; Wind gusts ; Temperature ; Humidity
- Operating temperature
- -40 à 65°C
- Current consumption
- 5 mA (en moyenne) de 4 à 6 VDC pour l'ISS seulement. 10 mA en moyenne entre la console et l'ISS
- UV radiation dose
-
- Units of measurement
- MEDs
- Resolution
- 0.1 MEDs à 19.9 MEDs, tous les 1 MED au dessus de 19.9 MEDS
- Accuracy
- ±5% pour le total journalier
- Measurement frequency
- 50 sec à 1 min
- Drift
- jusqu'à ± 2% par an
- Outdoor humidity
-
- Units of measurement
- % HR
- Resolution
- 1%
- Accuracy
- ±2%
- Measuring range
- 1 à 100% RH
- Measurement frequency
- 50 secondes à 1 minute
- Measurement principle
- Condensateur à film
- Drift
- inférieur à 0.25% par an
- Solar radiation
-
- Units of measurement
- W/m²
- Resolution
- 1 W/m²
- Accuracy
- ± 5% de l'échelle totale
- Measuring range
- 0 à 1800 W/m2
- Drift
- jusqu'à ± 2% par an
- Rainfall
-
- Units of measurement
- mm ou pouces
- Resolution
- 0.2 mm ou 0.01in
- Accuracy
- Pour les intensités de pluie jusqu'à 100 mm/h : ±3% du total ou +0.25 mm au plus
- Measurement frequency
- 20 à 24 secondes
- Measurement principle
- Auget basculant
- Rain receiving surface
- 214 cm2
- Rainfall rate
-
- Units of measurement
- mm/h ou in/h
- Resolution
- 0.1 mm ou 0.01 in/h
- Accuracy
- ±5% pour les intensités inférieures à 250 mm/h
- Measuring range
- 0 à 762 mm/h
- Measurement frequency
- 20 à 24 secondes
- Evapotranspiration
-
- Units of measurement
- mm ou pouces
- Resolution
- 0.1 mm ou 0.01in
- Accuracy
- 0.25 mm ou ±5%
- Measuring range
- Journalier jusqu'à 832,2 mm, mensuel et annuel jusqu'à 1999.9 mm
- Measurement frequency
- 1 heure
- Measurement principle
- Equation de Penman modifiée, telle que mise en œuvre par CIMIS (California Irrigation Management Information System)
- Dew point
-
- Units of measurement
- °C ou °F
- Resolution
- 1
- Accuracy
- ±1.5°C
- Measuring range
- -76° à 54°C
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- L'équation de l'OMM à l'égard de la saturation de l'air humide sur l'eau
