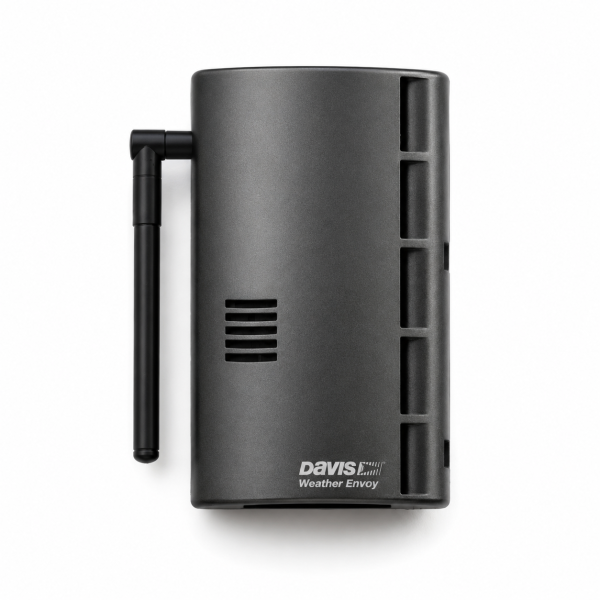

Weather Envoy Wireless Console

Weather Envoy Wireless Console

€194.00 (tax incl.) (€161.67 VAT excl.)
Delivery in 1 to 5 days

Console sans écran pour station météo Vantage Pro 2 sans fil ou pour la station météo Vantage Vue.

Reference
6316EU
Available (5 Items)

The Davis Instruments Weather Envoy 6316EU is a non-LCD console that will allow you to receive data from a Vantage Pro 2 weather station or ISS and send it to a computer (with the WeatherLink interface not included) so you can place your LCD console in another room. The Weather Envoy console offers the same measurement and data storage features as the Vantage Pro 2 LCD console.

The Weather Envoy is also compatible with the Davis Vantage Vue station and can be mounted on a wall.

The link between the outdoor sensors (ISS) and the console is via radio waves on the 868.0 - 868.6 MHz frequency with a range of 300 meters at sight.

6316 manual (EN)

Manual in english

Download (1.46MB)
Miscellaneous
Composition
Plastique PVC resistant aux UV
Power supply
5 V CC, 200 mA, réglementé
Size
165 x 106 x 38 mm
Weight
0.26 kg
Power supply autonomy
jusqu'à 4 mois (piles)
Operating temperature
-18°C à 60°C
Current consumption
0.90 mA en moyenne, pic de 20 mA, (plus 0.125 mA pour émetteur optionnel sans fil utilisé) entre 4 et 6 V CC
Warranty
2 ans
Backup power supply
3 piles AA (non fournies)
Storage temperature
-30°C à 70°C
Radio frequency
868.0-868.6 MHz FHSS
Wireless range
300 m à vue ; 60 à 120 m avec des obstacles
Atmospheric pressure
Units of measurement
" Hg, mm Hg, hPa/mb
Resolution
0.01" Hg, 0.1 mm Hg, 0.1 hPa/mb
Accuracy
±1.4 hPa/mb
Measurement frequency
1 minute
Inside temperature
Units of measurement
°F ou °C
Resolution
0.1
Accuracy
±0.5°C
Measuring range
-18°C à 60°C
Measurement frequency
1 minute
