Vantage Vue Weather Station

Vantage Vue Weather Station

€459.00 (tax incl.) (€382.50 VAT excl.)
Delivery in 1 to 5 days in Europa

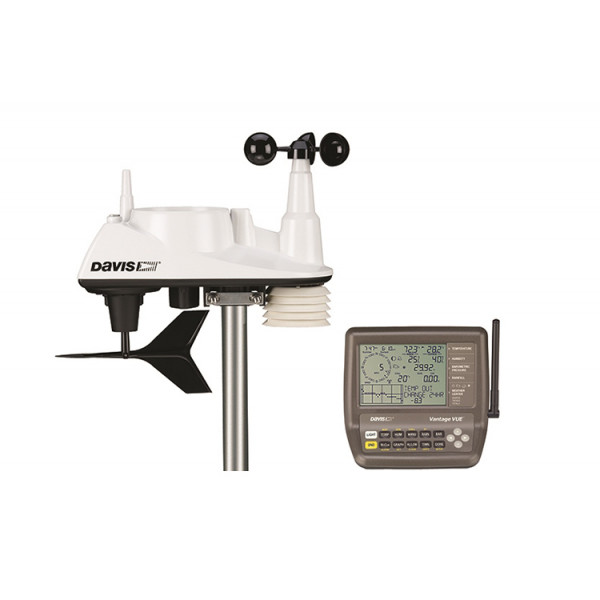

Complete weather station from Davis Instruments, ideal for the hobbyist world. All sensors are combined into one unit for easy installation. Wireless link between the sensors and the console with a maximum distance of 300m between the two.

Reference
6250EU
Available (13 Items)

Davis Instruments complete weather station, Vantage Vue part number 6250EU.

The link between the outdoor sensors (ISS) and the console is via radio waves on the 868.0 - 868.6 MHz frequency with a range of 300 meters at sight. The console is equipped with a large backlit LCD display and can be mounted on a wall or placed on a table or shelf. The console allows you to view real-time weather conditions, extremes (max and min), graphs corresponding to the different variables... It is also possible to set alarms and to connect the console to a computer (with the WeatherLink datalogger not supplied).

The ISS is very robust and can be installed on a mast (tube). A dual sensor for measuring outdoor temperature and humidity is placed in a solar radiation shelter. The rain gauge is equipped with a tipping bucket system to measure precipitation. The wind vane anemometer cannot be disconnected from the ISS.

The Davis Instruments Vantage Vue 6250EU weather station comes with:

  • An LCD console and power supply.
  • Outdoor sensor suite (ISS).
  • A mounting kit.
  • An instruction manual.

And allows to measure:

  • Indoor temperature - Resolution 0.1°C.
  • Outdoor temperature - Resolution 0.1°C.
  • Indoor humidity - Resolution: 1%.
  • Outdoor humidity - Resolution: 1%.
  • Atmospheric pressure - Resolution: 0.1 hPa.
  • Heat index - Resolution 1°C.
  • Dew point - Resolution 1°C.
  • Precipitation - Resolution 0.25 mm.
  • Feeling temperature - Resolution 1°C.
  • Wind speed from 3 to 241 Km/h - Resolution 1 Km/h.
  • Wind direction - Resolution 1°.

Console manual (EN)

Manual in english

Download (6.85MB)

VP2 Console manual (EN)

Manual in english

Download (3.56MB)
Miscellaneous
Size
45.7 x 18.4 x 38.4 cm
Weight
3.04 kg
Warranty
2 ans
Radio frequency
868.0 - 868.6 MHz FHSS, inférieur à 8mW
Wireless range
300m à vue, 60 à 120m avec des obstacles
Wind
Units of measurement
mph, km/h, m/s, Nœud
Resolution
1 mph, 1 km/h, 0.5 m/s, ou 1 Nœud
Accuracy
±3 km/h
Measuring range
0 à 322 km/h
Measurement frequency
2.5 à 3 secondes
Measurement principle
Godets à vent, capteur à effet Hall
Wind direction
Resolution
16 points (22,5°) sur la rose des vents, 1° à affichage numérique
Accuracy
±3°
Measuring range
0 à 360°
Measurement frequency
2.5 à 3 secondes
Measurement principle
Girouette avec potentiomètre
Atmospheric pressure
Units of measurement
in Hg, mm Hg, hPa/mb
Resolution
0.01in Hg, 0.1 mm Hg, 0.1 hPa/mb
Accuracy
±1.0 hPa
Measuring range
540 à 1100 hPa
Measurement frequency
1 minute
Outside temperature
Units of measurement
°C ou °F
Resolution
0.1
Accuracy
±0.5°C
Measuring range
-40°C à 65°C
Measurement frequency
10 à 12 secondes
Measurement principle
Diode à jonction PN de silicone
Windchill
Resolution
1
Accuracy
±1
Measurement frequency
10 à 12 secondes
Measurement principle
Calcul, formule de Osczevski (1995)
Inside temperature
Units of measurement
°C ou °F
Resolution
0.1
Accuracy
±0.5°C
Measuring range
0 à 60°C
Measurement frequency
1 minute
Receiving console
Composition
plastique ABS résistant aux UV
Measure
Temperature ; Humidity ; Atmospheric pressure
Power supply
Adaptateur secteur AC, 5 VDC, 300 mA, réglementé
Size
190 x 146 x 114 mm
Weight
0.67 kg
Power supply autonomy
9 mois (approximativement)
Operating temperature
0 à 60°C
Current consumption
0,9 mA en moyenne, 30 mA en crête, (ajoutez 120 mA pour les lampes d'affichage, ajoutez 0,125 mA pour chaque émetteur sans fil optionnel reçu par la console) à 4 - 6 VDC
Backup power supply
3 piles LR14 (non fournies)
Display
LCD, rétroéclairable
Integrated Sensor Suite (ISS)
Composition
plastiques ABS et ASA résistants aux UV
Measure
Temperature ; Humidity ; Wind speed ; Wind direction ; Rainfall ; Windchill ; Wind gusts
Power supply
panneau solaire, accumulateur 10F, pile de secours
Power supply autonomy
8 mois sans ensoleillement, plus de 2 ans en fonction de l'ensoleillement
Operating temperature
-40 à 65°C
Current consumption
0.20 mA (moyenne), 30 mA (pic) à 3.3 VDC
Backup power supply
pile Lithium 3V CR123 (non fournie)
Outdoor humidity
Units of measurement
% HR
Resolution
1%
Accuracy
±2%
Measuring range
1 à 100% RH
Measurement frequency
50 secondes à 1 minute
Measurement principle
Condensateur à film
Drift
inférieur à 0.25% par an
Rainfall
Units of measurement
mm ou pouces
Resolution
0.2 mm ou 0.01in
Accuracy
Pour les intensités de pluie jusqu'à 250 mm/h : ±4% du total ou ±0.2 mm au plus
Measurement frequency
20 à 24 secondes
Measurement principle
Auget basculant
Rain receiving surface
116 cm2
Rainfall rate
Units of measurement
mm/h ou in/h
Resolution
0.1 mm ou 0.01 in/h
Accuracy
±5% pour les intensités inférieures à 250 mm/h
Measuring range
0 à 762 mm/h
Measurement frequency
20 à 24 secondes
Indoor humidity
Units of measurement
% HR
Resolution
1 % HR
Accuracy
±2%
Measuring range
1 à 100% HR
Measurement frequency
1 minute
Dew point
Units of measurement
°C ou °F
Resolution
1
Accuracy
±1.5°C
Measuring range
-76° à 54°C
Measurement frequency
10 à 12 secondes
Measurement principle
L'équation de l'OMM à l'égard de la saturation de l'air humide sur l'eau
