Vantage Pro2, WeatherLink Live Bundle (no console)

Vantage Pro2, WeatherLink Live Bundle (no console)

€899.00 (tax incl.) (€749.17 VAT excl.)
Delivery in 1 to 5 days in Europa

The Vantage Pro 2 Weather Station + WeatherLink Live Console Bundle gives you a connected weather station at the best price! Bundle without LCD console. Professional weather station from Davis Instruments. This is the classic wireless version of the Vantage pro 2 stations. It is suitable for both amateurs and professionals in agriculture, construction, research, etc.

Reference
6112EU
Available (10 Items)

This package includes a Davis Instruments Vantage Pro 2 sensor suite and a WeatherLink Live connected console.

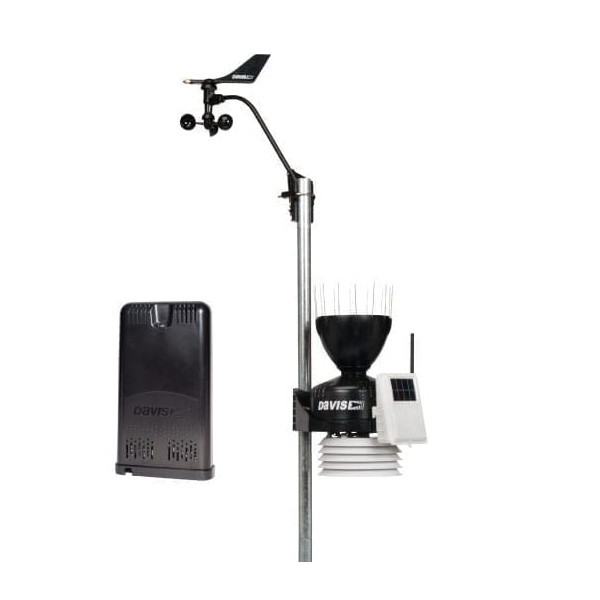

Davis Instruments Vantage Pro 2 weather station with WeatherLink Live console, part number 6112EU.

The link between the outdoor sensors (ISS) and the console is via radio waves on the 868.0 - 868.6 MHz frequency with a maximum range of 300 meters.

The ISS is very robust and can be mounted on a mast (tube) or on a wooden pole. A dual sensor for measuring outdoor temperature and humidity is placed in a standardised (solar) radiation shelter. The rain gauge is equipped with a tipping bucket system to measure precipitation. The wind vane anemometer can be detached from the ISS and installed on a roof, for example, with its 12-metre cable.

The WeatherLink Live console allows you to connect your weather data to the internet and view your data from anywhere with the weatherlink.com cloud and the WeatherLink mobile app available on Android and iOS.

NEW: - Single tipping bucket system for improved accuracy and stability

The Vantage Pro 2 Sensor Suite + WeatherLink Live 6112EU console package comes with:

  • WeatherLink Live console and power supply.
  • Outdoor Sensor Suite (ISS), part number 6322OV.
  • A wind sensor with 12 meters of cable.
  • A fixing kit.
  • An user manual.

And allows to measure:

  • Indoor temperature - Resolution 0,1°C.
  • Outdoor temperature - Resolution 0.1°C.
  • Indoor humidity - Resolution: 1%.
  • Outdoor humidity - Resolution: 1%.
  • Atmospheric pressure - Resolution: 0.1 hPa.
  • Heat index - Resolution 1°C.
  • Dew point - Resolution 1°C.
  • Precipitation - Resolution 0.2 mm.
  • Feeling temperature - Resolution 1°C.
  • Wind speed from 3 to 320 km/h - Resolution 1 km/h.
  • Wind direction - Resolution 1°.

A second Vantage Pro 2 Weather Station + WeatherLink Live console package is available, including the Vantage Pro 2 console, ref 6122EU.

Manual ISS (FR/DE/ES)

Manual in french/spanish/german

Download (2.17MB)

WEATHERLINK LIVE MANUAL (EN)

Manual in english

Download (1.08MB)

Manuel ISS VP2 (EN)

Manuel en anglais

Download (3.08MB)
Miscellaneous
Size
445 x 264 x 406 mm
Weight
5.4 kg
Warranty
2 ans
Radio frequency
868.0 - 868.6 MHz FHSS, inférieur à 8mW
Wireless range
300m à vue, 60 à 120m avec des obstacles
Wind
Units of measurement
mph, km/h, m/s, Nœud
Resolution
1 mph, 1 km/h, 0.5 m/s, ou 1 Nœud
Accuracy
±3 km/h
Measuring range
3 à 290 km/h
Measurement frequency
2.5 à 3 secondes
Wiring
12m de longueur, max recommandé 165m
Measurement principle
Godets à vent, capteur à effet Hall
Wind direction
Resolution
16 points (22,5°) sur la rose des vents, 1° à affichage numérique
Accuracy
±3°
Measuring range
0 à 360°
Measurement frequency
2.5 à 3 secondes
Measurement principle
Girouette avec potentiomètre
Atmospheric pressure
Units of measurement
in Hg, mm Hg, hPa/mb
Resolution
0.01in Hg, 0.1 mm Hg, 0.1 hPa/mb
Accuracy
±1.0 hPa
Measuring range
540 à 1100 hPa
Measurement frequency
1 minute
Outside temperature
Units of measurement
°C ou °F
Resolution
0.1
Accuracy
±0.3°C
Measuring range
-40°C à 65°C
Measurement frequency
10 à 12 secondes
Measurement principle
Diode à jonction PN de silicone
Windchill
Resolution
1
Accuracy
±1
Measurement frequency
10 à 12 secondes
Measurement principle
Calcul, formule de Osczevski (1995)
Inside temperature
Units of measurement
°C ou °F
Resolution
0.1
Accuracy
±0.5°C
Measuring range
0 à 60°C
Measurement frequency
1 minute
Receiving console
Composition
plastique ABS résistant aux UV
Measure
Temperature ; Humidity ; Atmospheric pressure
Power supply
Adaptateur secteur AC, 5 VDC, 300 mA, réglementé
Size
245 mm x 156 mm x 41 mm
Weight
0.85 kg
Power supply autonomy
1 mois (approximativement)
Operating temperature
0 à 60°C
Current consumption
0,9 mA en moyenne, 30 mA en crête, (ajoutez 120 mA pour les lampes d'affichage, ajoutez 0,125 mA pour chaque émetteur sans fil optionnel reçu par la console) à 4 - 6 VDC
Backup power supply
3 piles LR14 (non fournies)
Display
LCD, rétroéclairable
Integrated Sensor Suite (ISS)
Composition
plastiques ABS et ASA résistants aux UV
Measure
Temperature ; Humidity ; Wind speed ; Wind direction ; Rainfall ; Windchill ; Wind gusts
Power supply
panneau solaire, accumulateur 10F, pile de secours
Power supply autonomy
8 mois sans ensoleillement, plus de 2 ans en fonction de l'ensoleillement
Operating temperature
-40 à 65°C
Current consumption
5 mA (en moyenne) de 4 à 6 VDC pour l'ISS seulement. 10 mA en moyenne entre la console et l'ISS
Backup power supply
pile Lithium 3V CR123 (non fournie)
Outdoor humidity
Units of measurement
% HR
Resolution
1%
Accuracy
±2%
Measuring range
1 à 100% RH
Measurement frequency
50 secondes à 1 minute
Measurement principle
Condensateur à film
Drift
inférieur à 0.25% par an
Rainfall
Units of measurement
mm ou pouces
Resolution
0.2 mm ou 0.01in
Accuracy
Pour les intensités de pluie jusqu'à 100 mm/h : ±3% du total ou +0.25 mm au plus
Measurement frequency
20 à 24 secondes
Measurement principle
Auget basculant
Rain receiving surface
214 cm2
Rainfall rate
Units of measurement
mm/h ou in/h
Resolution
0.1 mm ou 0.01 in/h
Accuracy
±5% pour les intensités inférieures à 250 mm/h
Measuring range
0 à 762 mm/h
Measurement frequency
20 à 24 secondes
Indoor humidity
Units of measurement
% HR
Resolution
1 % HR
Accuracy
±2%
Measuring range
1 à 100% HR
Measurement frequency
1 minute
Dew point
Units of measurement
°C ou °F
Resolution
1
Accuracy
±1.5°C
Measuring range
-76° à 54°C
Measurement frequency
10 à 12 secondes
Measurement principle
L'équation de l'OMM à l'égard de la saturation de l'air humide sur l'eau
