Interface BACnet MS/TP pour station météo

The KTA-402 BACnet MS/TP Weather Station Gateway connects a Davis Instruments weather station to a BACnet MS/TP network, specifically designed to meet the needs of building automation systems.

This gateway provides a simple way to integrate your BACnet network with one of the following Davis weather stations:

Vantage Pro 2 Cable
Vantage Pro 2 Plus Cable
Vantage Pro 2 Wireless
Vantage Pro 2 Plus Wireless

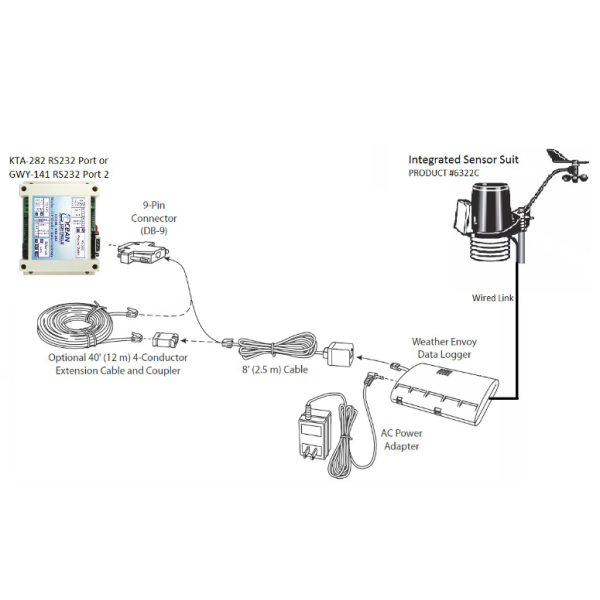

The gateway connects to the weather station console via the Davis WeatherLink cable (Weather Link for Vantage Pro Serial) and becomes part of the BACnet network. This allows your SCADA system or other BACnet devices on the network to monitor and take action based on data such as wind speed, wind direction, temperature, and more.

If you are looking for a complete solution, please see our BACnet weather station kits. They have everything you need to get weather station data onto your BACnet network.

Power Supply: 12-36VDC

Power Consumption: 1.2W @12V, 0.96W @24V

Operating Temperature: 0 to 70°C

Output: Two digital outputs for alarms or control (0VDC or 3.3VDC)

Protocol: BACnet MS/TP over RS-485 compatible
BACnet network settings are easily configurable via the web interface, software application, or BACnet object.
Supports discovery of BACnet devices and objects.
Allows configuration of unit conversions.

Dimensions: 115 × 90 × 40 mm

The device can be screwed onto a panel or mounted on a DIN rail.
