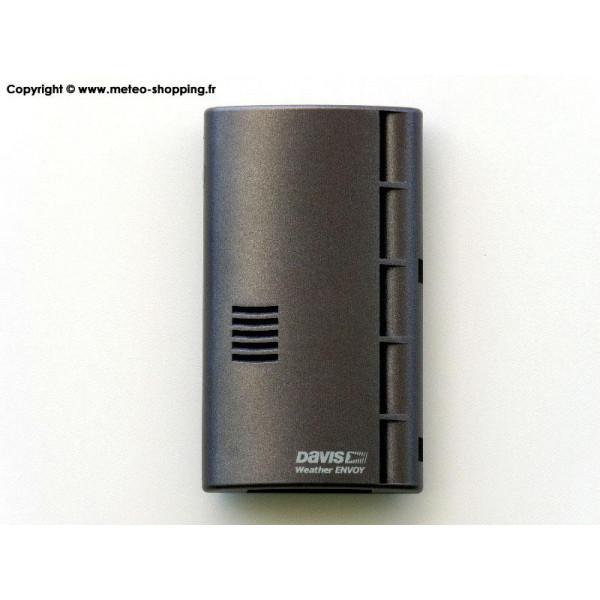

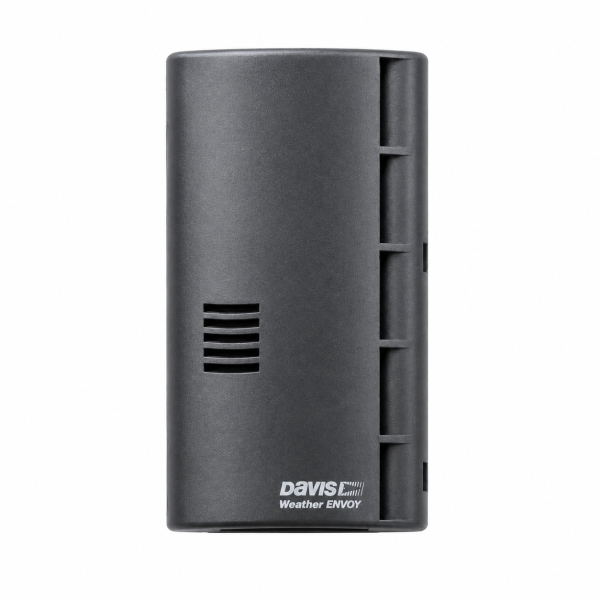

Weather Envoy console cabled version

Weather Envoy console cabled version

€249.00 (tax incl.) (€207.50 VAT excl.)

Console without display for wired Vantage Pro 2 and wired Vantage Pro 2 Plus weather stations.

Reference
6316CEU
Preorder

The Weather Envoy Console is a non-LCD console that allows you to receive data from a Vantage Pro 2 weather station or sensor suite (ISS) and send it to a computer (with the WeatherLink interface not included). The Weather Envoy console provides the same measurement and data storage functions as the Vantage Pro 2 weather station's LCD console.

The Weather Envoy can be mounted on a wall.

The link between the outdoor sensors (ISS) and the console is via cable, compatible with Davis Instrument Vantage Pro 2 6152CEU and Vantage Pro 2 Plus 6162CEU stations.

Manual 6316 (EN)

Download (1.46MB)

Product sheet 6316 (EN)

Download (226.5KB)
Miscellaneous
Composition
Plastique PVC résistant aux UV
Size
165 x 95 x 38 mm
Weight
0.26 kg
External power supply
5 V CC, 200 mA, réglementé ou 3 piles AA
Power supply autonomy
jusqu'à 1 mois
Operating temperature
-18°C à 60°C
Current consumption
10 mA en moyenne, pic de 15 mA entre 4 et 6 V CC
Backup power supply
3 piles AA (non fournies)
Storage temperature
-30°C à 70°C
Atmospheric pressure
Units of measurement
" Hg, mm Hg, hPa/mb
Resolution
0.01" Hg, 0.1 mm Hg, 0.1 hPa/mb
Accuracy
±1.4 hPa/mb
Measurement frequency
1 minute
Inside temperature
Units of measurement
°F ou °C
Resolution
±0.5°C
Accuracy
0.1
Measuring range
-18°C à 60°C
Measurement frequency
1 minute
