Vantage Pro 2 Plus Wireless Weather Station

€1,369.00 (tax incl.) (€1,140.83 VAT excl.)

Delivery in 1 to 5 days in Europa

Davis Instruments Professional Weather Station. A complete version of the Vantage Pro 2 Plus weather station, this weather station also has solar sensors (pyranometer and UV sensor). The presence of the pyranometer allows the calculation of evapotranspiration.

Reference

6162EU

Available (2 Items)

Description
Downloads

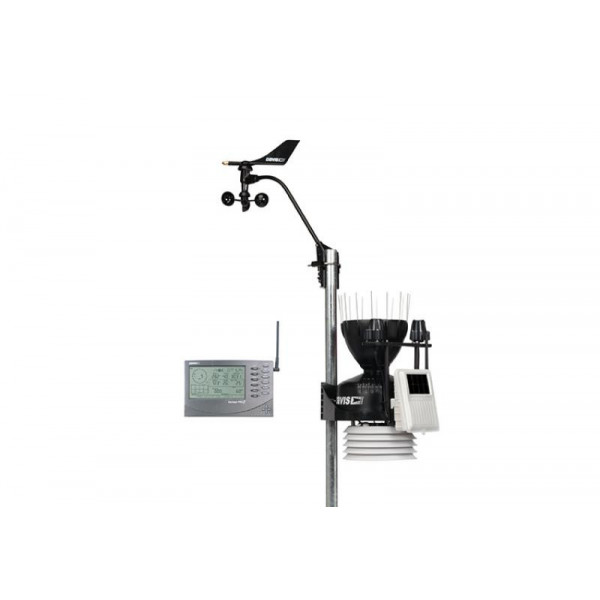

Davis Instruments complete weather station, part number 6162EU. The link between the outdoor sensors (ISS) and the console is via radio waves on the frequency 868.0 - 868.6 MHz with a range of 300 metres at sight. The console is equipped with a large backlit LCD display and can be mounted on a wall or placed on a table or shelf. The console allows the user to view real-time weather conditions, extremes (max and min), and graphs of the various variables. It is also possible to set alarms and connect the console to a computer (with the WeatherLink interface not included). The ISS is very robust and can be mounted on a mast (tube) or on a wooden pole. A dual sensor for measuring outdoor temperature and humidity is placed in a standardised (solar) radiation shelter. The rain gauge is equipped with a 2-trough tipping bucket system for measuring precipitation and anti-bird spikes. The anemometer - wind vane can be detached from the ISS to be installed on a roof for example thanks to its 12 meter cable. The ISS is equipped with a UV sensor to measure the UV index and a pyranometer to measure solar radiation and potential evapotranspiration (used in agriculture).

NEW: - Single-auger rain gauge system for improved accuracy and stability

The Davis Vantage Pro 2 6162EU weather station comes with:

LCD console and power supply.
Outdoor sensor suite (ISS).
A wind vane with 12 meters of cable
A mounting kit
UV sensor
A pyranometer
A stand for the UV probe and the pyranometer.
An instruction manual

And allows to measure:

Indoor temperature - Resolution 0,1°C.
Outdoor temperature - Resolution 0,1°C.
Indoor humidity - Resolution: 1%.
Outdoor humidity - Resolution: 1%.
Atmospheric pressure - Resolution: 0.1 hPa.
Heat index - Resolution 1°C.
Dew point - Resolution 1°C.
Precipitation - Resolution 0.25 mm.
Feeling temperature - Resolution 1°C.
Wind speed from 3 to 241 Km/h - Resolution 1 Km/h.
Wind direction - Resolution 1°.
Evapotranspiration (ET)
Solar radiation in W/m² - Resolution 1 M/m².
UV index - Resolution 0.1.
UV dose - Resolution 0.1 MED < 20 - 1 MED > 20.

Manual Console 6312EU (FR/ES/DE)

Download (4.41MB)

Manual ISS VP2 (FR/ES/DE)

Download (2.17MB)

Manuel ISS VP2 (EN)

Download (3.08MB)

Manual Console 6312EU (EN)

Download (3.56MB)

Product sheet 6152-6162 (EN)

Download (635.68KB)

Product sheet 6152-63 (EN)

Download (672.84KB)

Product sheet 6162EU (FR)

Download (211.92KB)

Data sheet

Miscellaneous

Measure: Temperature ; Humidity ; Wind speed ; Wind direction ; Atmospheric pressure ; Rainfall ; UV ; Solar radiation ; Wind gusts
Size: 445 x 264 x 406 mm
Weight: 5.4 kg
Warranty: 2 ans
Radio frequency: 868.0 - 868.6 MHz FHSS, inférieur à 8mW
Wireless range: 300m à vue, 60 à 120m avec des obstacles

Wind

Units of measurement: mph, km/h, m/s, Nœud
Resolution: 1 mph, 1 km/h, 0.5 m/s, ou 1 Nœud
Accuracy: ±3 km/h
Measuring range: 3 à 290 km/h
Measurement frequency: 2.5 à 3 secondes
Wiring: 12m de longueur, max recommandé 165m
Measurement principle: Godets à vent, capteur à effet Hall

Wind direction

Resolution: 16 points (22,5°) sur la rose des vents, 1° à affichage numérique
Accuracy: ±3°
Measuring range: 0 à 360°
Measurement frequency: 2.5 à 3 secondes
Measurement principle: Girouette avec potentiomètre

Atmospheric pressure

Units of measurement: in Hg, mm Hg, hPa/mb
Resolution: 0.01in Hg, 0.1 mm Hg, 0.1 hPa/mb
Accuracy: ±1.0 hPa
Measuring range: 540 à 1100 hPa
Measurement frequency: 1 minute

UV Index

Resolution: 0.1
Accuracy: ± 5% de l'échelle totale
Measuring range: Indice 0 à 16
Measurement frequency: 50 sec à 1 min (5 minutes lorsqu'il fait sombre)
Drift: jusqu'à ± 2% par an

Outside temperature

Units of measurement: °C ou °F
Resolution: 0.1
Accuracy: ±0.3°C
Measuring range: -40°C à 65°C
Measurement frequency: 10 à 12 secondes
Measurement principle: Diode à jonction PN de silicone

Windchill

Resolution: 1
Accuracy: ±1
Measurement frequency: 10 à 12 secondes
Measurement principle: Calcul, formule de Osczevski (1995)

Inside temperature

Units of measurement: °C ou °F
Resolution: 0.1
Accuracy: ±0.5°C
Measuring range: 0 à 60°C
Measurement frequency: 1 minute

Receiving console

Composition: plastique ABS résistant aux UV
Measure: Temperature ; Humidity ; Atmospheric pressure
Power supply: Adaptateur secteur AC, 5 VDC, 300 mA, réglementé
Size: 245 mm x 156 mm x 41 mm
Weight: 0.85 kg
Power supply autonomy: 1 mois (approximativement)
Operating temperature: 0 à 60°C
Current consumption: 0,9 mA en moyenne, 30 mA en crête, (ajoutez 120 mA pour les lampes d'affichage, ajoutez 0,125 mA pour chaque émetteur sans fil optionnel reçu par la console) à 4 - 6 VDC
Backup power supply: 3 piles LR14 (non fournies)
Display: LCD, rétroéclairable

Integrated Sensor Suite (ISS)

Composition: plastiques ABS et ASA résistants aux UV
Measure: Temperature ; Humidity ; Wind speed ; Wind direction ; Rainfall ; UV ; Solar radiation ; Windchill ; Wind gusts
Power supply: panneau solaire, accumulateur 10F, pile de secours
Power supply autonomy: 8 mois sans ensoleillement, plus de 2 ans en fonction de l'ensoleillement
Operating temperature: -40 à 65°C
Current consumption: 5 mA (en moyenne) de 4 à 6 VDC pour l'ISS seulement. 10 mA en moyenne entre la console et l'ISS
Backup power supply: pile Lithium 3V CR123 (non fournie)

UV radiation dose

Units of measurement: MEDs
Resolution: 0.1 MEDs à 19.9 MEDs, tous les 1 MED au dessus de 19.9 MEDS
Accuracy: ±5% pour le total journalier
Measurement frequency: 50 sec à 1 min
Drift: jusqu'à ± 2% par an

Outdoor humidity

Units of measurement: % HR
Resolution: 1%
Accuracy: ±2%
Measuring range: 1 à 100% RH
Measurement frequency: 50 secondes à 1 minute
Measurement principle: Condensateur à film
Drift: inférieur à 0.25% par an

Solar radiation

Units of measurement: W/m²
Resolution: 1 W/m²
Accuracy: ± 5% de l'échelle totale
Measuring range: 0 à 1800 W/m2
Drift: jusqu'à ± 2% par an

Rainfall

Units of measurement: mm ou pouces
Resolution: 0.2 mm ou 0.01in
Accuracy: Pour les intensités de pluie jusqu'à 100 mm/h : ±3% du total ou +0.25 mm au plus
Measurement frequency: 20 à 24 secondes
Measurement principle: Auget basculant
Rain receiving surface: 214 cm2

Rainfall rate

Units of measurement: mm/h ou in/h
Resolution: 0.1 mm ou 0.01 in/h
Accuracy: ±5% pour les intensités inférieures à 250 mm/h
Measuring range: 0 à 762 mm/h
Measurement frequency: 20 à 24 secondes

Indoor humidity

Units of measurement: % HR
Resolution: 1 % HR
Accuracy: ±2%
Measuring range: 1 à 100% HR
Measurement frequency: 1 minute

Evapotranspiration

Units of measurement: mm ou pouces
Resolution: 0.1 mm ou 0.01in
Accuracy: 0.25 mm ou ±5%
Measuring range: Journalier jusqu'à 832,2 mm, mensuel et annuel jusqu'à 1999.9 mm
Measurement frequency: 1 heure
Measurement principle: Equation de Penman modifiée, telle que mise en œuvre par CIMIS (California Irrigation Management Information System)

Dew point

Units of measurement: °C ou °F
Resolution: 1
Accuracy: ±1.5°C
Measuring range: -76° à 54°C
Measurement frequency: 10 à 12 secondes
Measurement principle: L'équation de l'OMM à l'égard de la saturation de l'air humide sur l'eau
