Vantage Pro 2 Wireless Weather Station with Vantage Vue Console

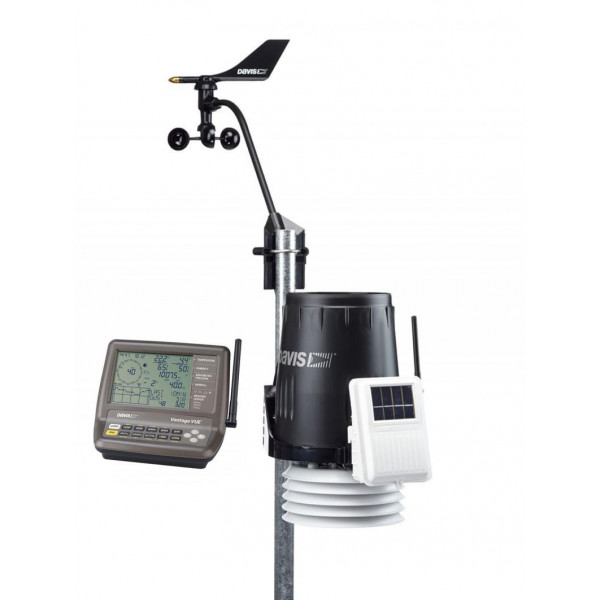

Davis Instruments Professional Weather Station. The sensor suite is from the Vantage Pro 2 weather station, the console is from the Vantage Vue 6351EU weather station.
This special package allows you to purchase the Vantage pro 2 weather station sensor suite in combination with the Vantage Vue console that is compatible with the Vantage pro 2 weather station.
The Vantage Vue console offers the same functionality as the Vantage pro 2 console but is more economical. This gives you the opportunity to get all the features of the Vantage pro 2 stations at a more affordable price. If you want to add solar sensors to your weather station in the future, it is advisable to purchase the Vantage pro 2 station with the classic console, as some parameters cannot be read on the console, such as evapotranspiration. Soil condition stations are not compatible.
Davis Instruments complete weather station.
The link between the outdoor sensors (ISS) and the console is via radio waves on the frequency 868.0 - 868.6 MHz with a range of 300 metres within sight. The console is equipped with a backlit LCD screen. This is not the console sold with the Vantage pro 2 weather stations but the console usually sold with the Vantage Vue weather station. The Vantage Vue console, like the Vantage pro 2 console, allows you to view real-time weather conditions, extremes (high and low), and graphs for different variables. It is also possible to set alarms and connect the console to a computer (with the WeatherLink interface not included). The ISS is very robust and can be mounted on a mast (tube) or on a wooden pole. A dual sensor for measuring outdoor temperature and humidity is placed in a standardised (solar) radiation shelter. The rain gauge is equipped with a tilting bucket system to measure rainfall. The anemometer - wind vane can be detached from the ISS to be installed on a roof for example thanks to its 12 meters cable.
NEW: - Single-auger rain gauge system for improved accuracy and stability
CAUTION: The Vantage Vue console is not compatible with the 6345OV, 6345CS-OV, 6382OV, and 6372OV auxiliary stations.
The Davis Vantage Pro 2 6152SEU weather station comes with:
- LCD console and power supply (Vantage Vue console)
- An outdoor sensor suite (ISS).
- A wind vane with 12 meters of cable.
- A mounting kit.
- A user manual.
And allows to measure:
- Indoor temperature - Resolution 0,1°C.
- Outdoor temperature - Resolution 0.1°C.
- Indoor humidity - Resolution: 1%.
- Outdoor humidity - Resolution: 1%.
- Atmospheric pressure - Resolution: 0.1 hPa.
- Heat index - Resolution 1°C.
- Dew point - Resolution 1°C.
- Precipitation - Resolution 0.2 mm.
- Feeling temperature - Resolution 1°C.
- Wind speed from 3 to 241 Km/h - Resolution 1 Km/h.
- Wind direction - Resolution 1°.
- Miscellaneous
-
- Size
- 445 x 264 x 406 mm
- Weight
- 5.4 kg
- Warranty
- 2 ans
- Radio frequency
- 868.0 - 868.6 MHz FHSS, inférieur à 8mW
- Wireless range
- 300m à vue, 60 à 120m avec des obstacles
- Wind
-
- Units of measurement
- mph, km/h, m/s, Nœud
- Resolution
- 1 mph, 1 km/h, 0.5 m/s, ou 1 Nœud
- Accuracy
- ±3 km/h
- Measuring range
- 3 à 290 km/h
- Measurement frequency
- 2.5 à 3 secondes
- Wiring
- 12m de longueur, max recommandé 165m
- Measurement principle
- Godets à vent, capteur à effet Hall
- Wind direction
-
- Resolution
- 16 points (22,5°) sur la rose des vents, 1° à affichage numérique
- Accuracy
- ±3°
- Measuring range
- 0 à 360°
- Measurement frequency
- 2.5 à 3 secondes
- Measurement principle
- Girouette avec potentiomètre
- Atmospheric pressure
-
- Units of measurement
- in Hg, mm Hg, hPa/mb
- Resolution
- 0.01in Hg, 0.1 mm Hg, 0.1 hPa/mb
- Accuracy
- ±1.0 hPa
- Measuring range
- 540 à 1100 hPa
- Measurement frequency
- 1 minute
- Outside temperature
-
- Units of measurement
- °C ou °F
- Resolution
- 0.1
- Accuracy
- ±0.3°C
- Measuring range
- -40°C à 65°C
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- Diode à jonction PN de silicone
- Windchill
-
- Resolution
- 1
- Accuracy
- ±1
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- Calcul, formule de Osczevski (1995)
- Inside temperature
-
- Units of measurement
- °C ou °F
- Resolution
- 0.1
- Accuracy
- ±0.5°C
- Measuring range
- 0 à 60°C
- Measurement frequency
- 1 minute
- Receiving console
-
- Composition
- plastique ABS résistant aux UV
- Measure
- Temperature ; Humidity ; Atmospheric pressure
- Power supply
- Adaptateur secteur AC, 5 VDC, 300 mA, réglementé
- Size
- 190 x 146 x 114 mm
- Weight
- 0.67 kg
- Power supply autonomy
- 9 mois (approximativement)
- Operating temperature
- 0 à 60°C
- Current consumption
- 0,9 mA en moyenne, 30 mA en crête, (ajoutez 120 mA pour les lampes d'affichage, ajoutez 0,125 mA pour chaque émetteur sans fil optionnel reçu par la console) à 4 - 6 VDC
- Backup power supply
- 3 piles LR14 (non fournies)
- Display
- LCD, rétroéclairable
- Integrated Sensor Suite (ISS)
-
- Composition
- plastiques ABS et ASA résistants aux UV
- Measure
- Temperature ; Humidity ; Wind speed ; Wind direction ; Rainfall ; Windchill ; Wind gusts
- Power supply
- panneau solaire, accumulateur 10F, pile de secours
- Power supply autonomy
- 8 mois sans ensoleillement, plus de 2 ans en fonction de l'ensoleillement
- Operating temperature
- -40 à 65°C
- Current consumption
- 5 mA (en moyenne) de 4 à 6 VDC pour l'ISS seulement. 10 mA en moyenne entre la console et l'ISS
- Backup power supply
- pile Lithium 3V CR123 (non fournie)
- Outdoor humidity
-
- Units of measurement
- % HR
- Resolution
- 1%
- Accuracy
- ±2%
- Measuring range
- 1 à 100% RH
- Measurement frequency
- 50 secondes à 1 minute
- Measurement principle
- Condensateur à film
- Drift
- inférieur à 0.25% par an
- Rainfall
-
- Units of measurement
- mm ou pouces
- Resolution
- 0.2 mm ou 0.01in
- Accuracy
- Pour les intensités de pluie jusqu'à 100 mm/h : ±3% du total ou +0.25 mm au plus
- Measurement frequency
- 20 à 24 secondes
- Measurement principle
- Auget basculant
- Rain receiving surface
- 214 cm2
- Rainfall rate
-
- Units of measurement
- mm/h ou in/h
- Resolution
- 0.1 mm ou 0.01 in/h
- Accuracy
- ±5% pour les intensités inférieures à 250 mm/h
- Measuring range
- 0 à 762 mm/h
- Measurement frequency
- 20 à 24 secondes
- Indoor humidity
-
- Units of measurement
- % HR
- Resolution
- 1 % HR
- Accuracy
- ±2%
- Measuring range
- 1 à 100% HR
- Measurement frequency
- 1 minute
- Dew point
-
- Units of measurement
- °C ou °F
- Resolution
- 1
- Accuracy
- ±1.5°C
- Measuring range
- -76° à 54°C
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- L'équation de l'OMM à l'égard de la saturation de l'air humide sur l'eau
