Wireless Vantage Pro2

Wireless Vantage Pro2

€659.00 (tax incl.) (€549.17 VAT excl.)
Delivery in 1 to 5 days

Professional weather station Vantage PRO2 6152EU from Davis Instruments. This is the classic wireless version of the Vantage pro 2 stations. It is suitable for both amateurs and professionals in agriculture, construction, research, etc.

Reference
6152EU
Available

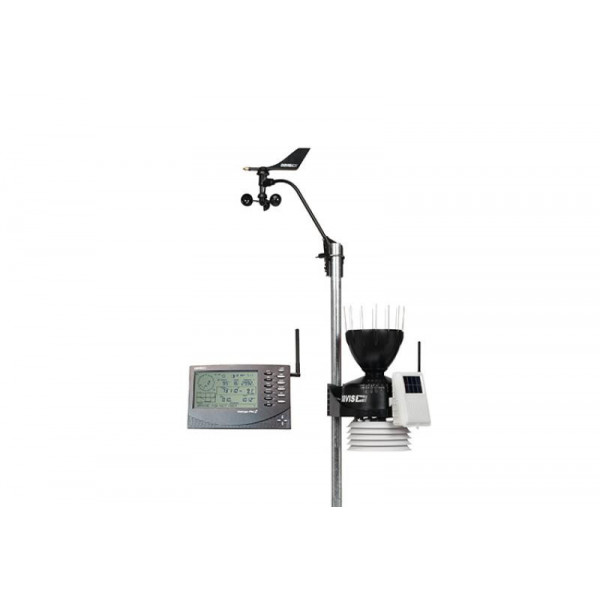

Complete weather station Vantage Pro 2 from Davis Instruments, part number 6152EU. The link between the outdoor sensors (ISS) and the console is via radio waves on the 868.0 - 868.6 MHz frequency with a maximum range of 300 metres. The console is equipped with a large backlit LCD display and can be mounted on a wall or placed on a table or shelf. The console allows you to view the weather conditions in real time, the extremes (maximum and minimum), the graphs corresponding to the different variables... It is also possible to set alarms and to connect the console to a computer (with the WeatherLink interface not supplied).

The ISS is very robust and can be mounted on a mast (tube) or on a wooden pole. A dual sensor for measuring outdoor temperature and humidity is placed in a standardised (solar) radiation shelter. The rain gauge is equipped with a tipping bucket system to measure precipitation. The anemometer - wind vane can be detached from the ISS and installed on a roof, for example, thanks to its 12-metre cable.

NEW: - Single-auger rain gauge system for improved accuracy and stability

The Davis Instruments Vantage Pro 2 6152EU weather station comes with:

  • An LCD console and power supply.
  • Outdoor sensor suite (ISS).
  • A wind vane with 12 meters of cable.
  • A fixing kit.
  • An instruction manual in French.

And allows to measure:

  • Indoor temperature - Resolution 0,1°C.
  • Outdoor temperature - Resolution 0,1°C.
  • Indoor humidity - Resolution: 1%.
  • Outdoor humidity - Resolution: 1%.
  • Atmospheric pressure - Resolution: 0.1 hPa.
  • Heat index - Resolution 1°C.
  • Dew point - Resolution 1°C.
  • Precipitation - Resolution 0.2 mm.
  • Feeling temperature - Resolution 1°C.
  • Wind speed from 3 to 241 km/h - Resolution 1 km/h.
  • Wind direction - Resolution 1°.

User manual ISS Vantage Pro 2

Manual de instrucciones ISS Vantage Pro 2

Download (1.58MB)

Console Manual (FR/ES/DE)

Manual in french/spanish/german

Download (4.41MB)

Manual ISS (FR/DE/ES)

Manual in french/spanish/german

Download (2.17MB)

Manuel ISS VP2 (EN)

Manuel en anglais

Download (3.08MB)

VP2 Console manual (EN)

Manual in english

Download (3.56MB)
Miscellaneous
Size
445 x 264 x 406 mm
Weight
5.4 kg
Warranty
2 ans
Radio frequency
868.0 - 868.6 MHz FHSS, inférieur à 8mW
Wireless range
300m à vue, 60 à 120m avec des obstacles
Wind
Units of measurement
mph, km/h, m/s, Nœud
Resolution
1 mph, 1 km/h, 0.5 m/s, ou 1 Nœud
Accuracy
±3 km/h
Measuring range
3 à 290 km/h
Measurement frequency
2.5 à 3 secondes
Wiring
12m de longueur, max recommandé 165m
Measurement principle
Godets à vent, capteur à effet Hall
Wind direction
Resolution
16 points (22,5°) sur la rose des vents, 1° à affichage numérique
Accuracy
±3°
Measuring range
0 à 360°
Measurement frequency
2.5 à 3 secondes
Measurement principle
Girouette avec potentiomètre
Atmospheric pressure
Units of measurement
in Hg, mm Hg, hPa/mb
Resolution
0.01in Hg, 0.1 mm Hg, 0.1 hPa/mb
Accuracy
±1.0 hPa
Measuring range
540 à 1100 hPa
Measurement frequency
1 minute
Outside temperature
Units of measurement
°C ou °F
Resolution
0.1
Accuracy
±0.3°C
Measuring range
-40°C à 65°C
Measurement frequency
10 à 12 secondes
Measurement principle
Diode à jonction PN de silicone
Windchill
Resolution
1
Accuracy
±1
Measurement frequency
10 à 12 secondes
Measurement principle
Calcul, formule de Osczevski (1995)
Inside temperature
Units of measurement
°C ou °F
Resolution
0.1
Accuracy
±0.5°C
Measuring range
0 à 60°C
Measurement frequency
1 minute
Receiving console
Composition
plastique ABS résistant aux UV
Measure
Temperature ; Humidity ; Atmospheric pressure
Power supply
Adaptateur secteur AC, 5 VDC, 300 mA, réglementé
Size
245 mm x 156 mm x 41 mm
Weight
0.85 kg
Power supply autonomy
1 mois (approximativement)
Operating temperature
0 à 60°C
Current consumption
0,9 mA en moyenne, 30 mA en crête, (ajoutez 120 mA pour les lampes d'affichage, ajoutez 0,125 mA pour chaque émetteur sans fil optionnel reçu par la console) à 4 - 6 VDC
Backup power supply
3 piles LR14 (non fournies)
Display
LCD, rétroéclairable
Integrated Sensor Suite (ISS)
Composition
plastiques ABS et ASA résistants aux UV
Measure
Temperature ; Humidity ; Wind speed ; Wind direction ; Rainfall ; Windchill ; Wind gusts
Power supply
panneau solaire, accumulateur 10F, pile de secours
Power supply autonomy
8 mois sans ensoleillement, plus de 2 ans en fonction de l'ensoleillement
Operating temperature
-40 à 65°C
Current consumption
5 mA (en moyenne) de 4 à 6 VDC pour l'ISS seulement. 10 mA en moyenne entre la console et l'ISS
Backup power supply
pile Lithium 3V CR123 (non fournie)
Outdoor humidity
Units of measurement
% HR
Resolution
1%
Accuracy
±2%
Measuring range
1 à 100% RH
Measurement frequency
50 secondes à 1 minute
Measurement principle
Condensateur à film
Drift
inférieur à 0.25% par an
Rainfall
Units of measurement
mm ou pouces
Resolution
0.2 mm ou 0.01in
Accuracy
Pour les intensités de pluie jusqu'à 100 mm/h : ±3% du total ou +0.25 mm au plus
Measurement frequency
20 à 24 secondes
Measurement principle
Auget basculant
Rain receiving surface
214 cm2
Rainfall rate
Units of measurement
mm/h ou in/h
Resolution
0.1 mm ou 0.01 in/h
Accuracy
±5% pour les intensités inférieures à 250 mm/h
Measuring range
0 à 762 mm/h
Measurement frequency
20 à 24 secondes
Indoor humidity
Units of measurement
% HR
Resolution
1 % HR
Accuracy
±2%
Measuring range
1 à 100% HR
Measurement frequency
1 minute
Dew point
Units of measurement
°C ou °F
Resolution
1
Accuracy
±1.5°C
Measuring range
-76° à 54°C
Measurement frequency
10 à 12 secondes
Measurement principle
L'équation de l'OMM à l'égard de la saturation de l'air humide sur l'eau
