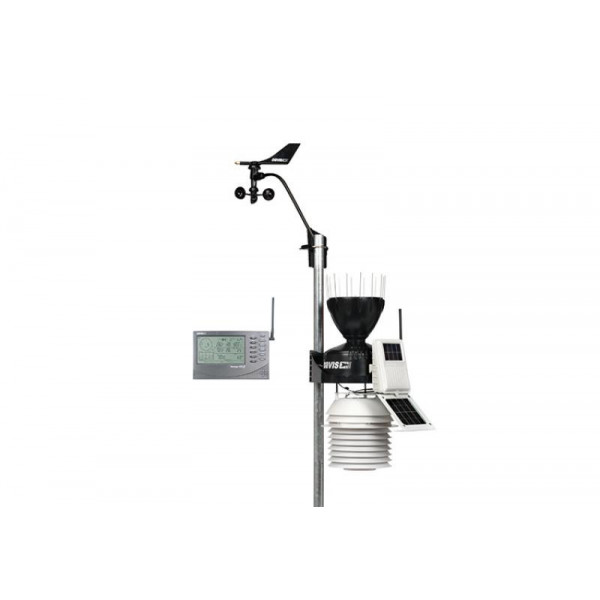

Wireless Vantage Pro2 with 24-Hour Fan Aspirated Radiation Shield

Davis Instruments Vantage Pro 2 Professional Weather Station. This station has the added benefit of a 24-hour active radiation shelter compared to the Vantage Pro 2 6152EU weather station. It is suitable for both hobbyists and professionals in agriculture, construction, research, etc.
Complete weather station from Davis Instruments, part number 6153EU. The link between the outdoor sensors (ISS) and the console is via radio waves on the frequency 868.0 - 868.6 MHz with a range of 300 metres at sight. The console is equipped with a large backlit LCD display and can be mounted on a wall or placed on a table or shelf. The console allows you to view the weather conditions in real time, the extremes (maximum and minimum), the graphs corresponding to the different variables... It is also possible to set alarms and to connect the console to a computer (with the WeatherLink interface not supplied).
The ISS is very robust and can be mounted on a mast (tube) or on a wooden pole. A dual sensor for measuring outdoor temperature and humidity is placed in a standardised radiation (sun) shelter with 24-hour active ventilation. The active ventilation allows for more accurate outdoor temperature and humidity measurements 24 hours a day. The rain gauge is equipped with a tilting bucket system for measuring precipitation. The anemometer - wind vane can be detached from the ISS to be installed on a roof for example thanks to its 12 meter cable.
NEW: - Single-tilting bucket rain gauge system for improved accuracy and stability
The Davis Instruments Vantage Pro 2 6153EU weather station comes with:
- An LCD console and power supply.
- Outdoor sensor suite (ISS).
- A wind vane with 12 meters of cable.
- A fixing kit.
- A 24-hour active ventilation system.
- An instruction manual
And allows to measure:
- Indoor temperature - Resolution 0,1°C.
- Outdoor temperature - Resolution 0,1°C.
- Indoor humidity - Resolution: 1%.
- Outdoor humidity - Resolution: 1%.
- Atmospheric pressure - Resolution: 0.1 hPa.
- Heat index - Resolution 1°C.
- Dew point - Resolution 1°C.
- Precipitation - Resolution 0.2 mm.
- Feeling temperature - Resolution 1°C.
- Wind speed from 3 to 241 km/h - Resolution 1 km/h.
- Wind direction - Resolution 1°.
Note on warranty: There is no warranty for the batteries of the active ventilation.
-
Not mounted!!! (Translated review)
-
I haven't installed it yet but it's already a beautiful item. I can't wait to use it (Translated review)
-
Conforms to the product. (Translated review)
- Miscellaneous
-
- Size
- 378 x 327 x 594 mm
- Weight
- 7.6 kg
- Warranty
- 2 ans
- Radio frequency
- 868.0 - 868.6 MHz FHSS, inférieur à 8mW
- Wireless range
- 300m à vue, 60 à 120m avec des obstacles
- Wind
-
- Units of measurement
- mph, km/h, m/s, Nœud
- Resolution
- 1 mph, 1 km/h, 0.5 m/s, ou 1 Nœud
- Accuracy
- ±3 km/h
- Measuring range
- 3 à 290 km/h
- Measurement frequency
- 2.5 à 3 secondes
- Wiring
- 12m de longueur, max recommandé 165m
- Measurement principle
- Godets à vent, capteur à effet Hall
- Wind direction
-
- Resolution
- 16 points (22,5°) sur la rose des vents, 1° à affichage numérique
- Accuracy
- ±3°
- Measuring range
- 0 à 360°
- Measurement frequency
- 2.5 à 3 secondes
- Measurement principle
- Girouette avec potentiomètre
- Atmospheric pressure
-
- Units of measurement
- in Hg, mm Hg, hPa/mb
- Resolution
- 0.01in Hg, 0.1 mm Hg, 0.1 hPa/mb
- Accuracy
- ±1.0 hPa
- Measuring range
- 540 à 1100 hPa
- Measurement frequency
- 1 minute
- Outside temperature
-
- Units of measurement
- °C ou °F
- Resolution
- 0.1
- Accuracy
- ±0.3°C
- Measuring range
- -40°C à 65°C
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- PN junction silicon diode
- Windchill
-
- Resolution
- 1
- Accuracy
- ±1
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- Calcul, formule de Osczevski (1995)
- Inside temperature
-
- Units of measurement
- °C ou °F
- Resolution
- 0.1
- Accuracy
- ±0.5°C
- Measuring range
- 0 à 60°C
- Measurement frequency
- 1 minute
- Receiving console
-
- Composition
- plastique ABS résistant aux UV
- Measure
- Temperature ; Humidity ; Atmospheric pressure
- Power supply
- Adaptateur secteur AC, 5 VDC, 300 mA, réglementé
- Size
- 245 mm x 156 mm x 41 mm
- Weight
- 0.85 kg
- Power supply autonomy
- 1 mois (approximativement)
- Operating temperature
- 0 à 60°C
- Current consumption
- 0,9 mA en moyenne, 30 mA en crête, (ajoutez 120 mA pour les lampes d'affichage, ajoutez 0,125 mA pour chaque émetteur sans fil optionnel reçu par la console) à 4 - 6 VDC
- Backup power supply
- 3 piles LR14 (non fournies)
- Display
- LCD, rétroéclairable
- Integrated Sensor Suite (ISS)
-
- Composition
- plastiques ABS et ASA résistants aux UV
- Measure
- Temperature ; Humidity ; Wind speed ; Wind direction ; Rainfall ; Windchill ; Wind gusts
- Power supply
- panneau solaire, accumulateur 10F, pile de secours
- Power supply autonomy
- 8 mois sans ensoleillement, plus de 2 ans en fonction de l'ensoleillement
- Operating temperature
- -40 à 65°C
- Current consumption
- 5 mA (en moyenne) de 4 à 6 VDC pour l'ISS seulement. 10 mA en moyenne entre la console et l'ISS
- Backup power supply
- pile Lithium 3V CR123 (non fournie)
- Outdoor humidity
-
- Units of measurement
- % HR
- Resolution
- 1%
- Accuracy
- ±2%
- Measuring range
- 1 à 100% RH
- Measurement frequency
- 50 secondes à 1 minute
- Measurement principle
- Condensateur à film
- Drift
- inférieur à 0.25% par an
- Rainfall
-
- Units of measurement
- mm ou pouces
- Resolution
- 0.2 mm ou 0.01in
- Accuracy
- Pour les intensités de pluie jusqu'à 100 mm/h : ±3% du total ou +0.25 mm au plus
- Measurement frequency
- 20 à 24 secondes
- Measurement principle
- Auget basculant
- Rain receiving surface
- 214 cm2
- Rainfall rate
-
- Units of measurement
- mm/h ou in/h
- Resolution
- 0.1 mm ou 0.01 in/h
- Accuracy
- ±5% pour les intensités inférieures à 250 mm/h
- Measuring range
- 0 à 762 mm/h
- Measurement frequency
- 20 à 24 secondes
- Indoor humidity
-
- Units of measurement
- % HR
- Resolution
- 1 % HR
- Accuracy
- ±2%
- Measuring range
- 1 à 100% HR
- Measurement frequency
- 1 minute
- Dew point
-
- Units of measurement
- °C ou °F
- Resolution
- 1
- Accuracy
- ±1.5°C
- Measuring range
- -76° à 54°C
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- L'équation de l'OMM à l'égard de la saturation de l'air humide sur l'eau
