New Vantage Pro2, WeatherLink Live Bundle (with console)

Vantage Pro2, WeatherLink Live Bundle (with console)

€908.00 Save €20.00
€888.00 (tax incl.) (€740.00 VAT excl.)
Delivery in 1 to 5 days

The Vantage Pro 2 Weather Station + WeatherLink Live Console Bundle gives you a connected weather station at the best price! Bundle with LCD console 6312EU. Professional weather station from Davis Instruments. This is the classic wireless version of the Vantage pro 2 stations. It is suitable for both amateurs and professionals in agriculture, construction, research, etc.

Reference
6122EU
Available

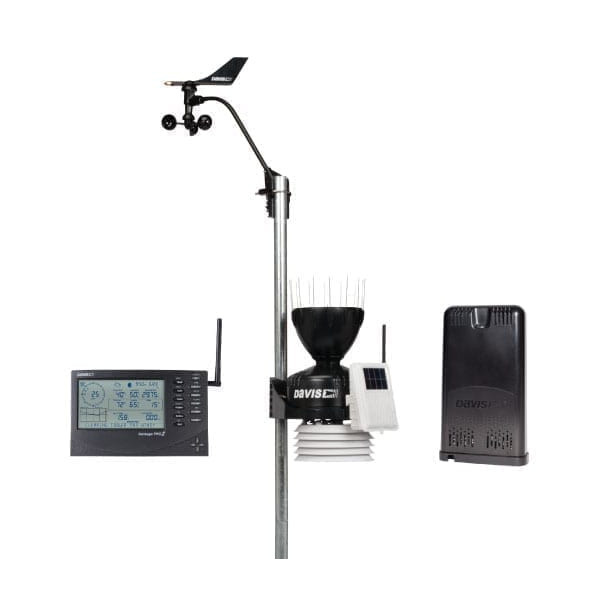

This package includes a Davis Instruments Vantage Pro 2 Weather Station, complete with 6112EU LCD display console and a WeatherLink Live connected console.

Davis Instruments Vantage Pro 2 Weather Station with WeatherLink Live console, part number 6122EU.

The link between the outdoor sensors (ISS) and the console is via radio waves on the 868.0 - 868.6 MHz frequency with a maximum range of 300 meters.

The ISS is very robust and can be installed on a mast (tube) or on a wooden pole. A dual sensor for measuring outdoor temperature and humidity is placed in a standardised radiation (sun) shelter. The rain gauge is equipped with a tipping bucket system to measure precipitation. The wind vane anemometer can be detached from the ISS and installed on a roof, for example, with its 12-metre cable.

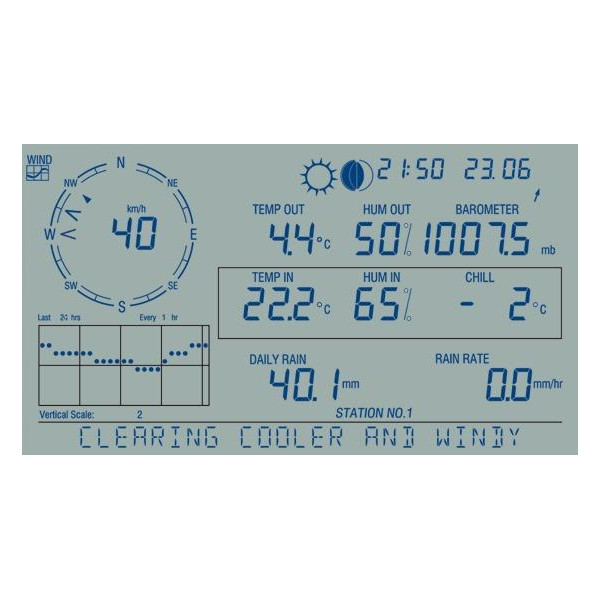

The console is equipped with a large backlit LCD display and can be mounted on a wall or placed on a table or shelf. The console allows you to view real-time weather conditions, extremes (maximum and minimum), graphs corresponding to the different variables...

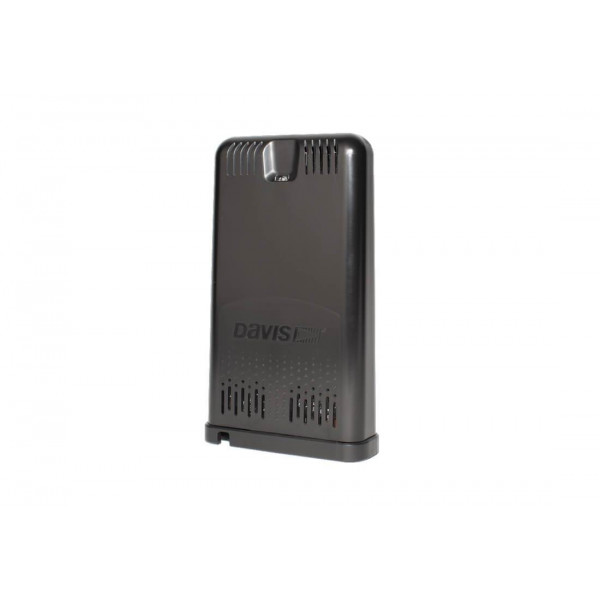

The WeatherLink Live console allows you to connect your weather data to the internet and to consult your data from anywhere thanks to the weatherlink.com cloud and the WeatherLink mobile application available on Android and iOS.

NEW: - Single  tipping bucket system for improved accuracy and stability

The Vantage Pro 2 Weather Station + WeatherLink Live 6112EU console comes with:

  • WeatherLink Live console and power supply, part number 6100EU
  • Vantage Pro 2 console and power supply, part number 6312EU
  • Outdoor Sensor Suite (ISS), part number 6322OV.
  • A wind gauge with 12 metres of cable.
  • A fixing kit.
  • An user manual.

And allows to measure:

  • Indoor temperature - Resolution 0,1°C.
  • Outdoor temperature - Resolution 0.1°C.
  • Indoor humidity - Resolution: 1%.
  • Outdoor humidity - Resolution: 1%.
  • Atmospheric pressure - Resolution: 0.1 hPa.
  • Heat index - Resolution 1°C.
  • Dew point - Resolution 1°C.
  • Precipitation - Resolution 0.2 mm.
  • Feeling temperature - Resolution 1°C.
  • Wind speed from 3 to 320 km/h - Resolution 1 km/h.
  • Wind direction - Resolution 1°.

A second Vantage Pro 2 Sensor Suite + WeatherLink Live console bundle is available, the Vantage Pro 2 console not included, ref 6112EU.

Miscellaneous
Size
445 x 264 x 406 mm
Weight
5.4 kg
Warranty
2 years
Radio frequency
868.0 - 868.6 MHz FHSS, below 8mW
Wireless range
300m on sight, 60 to 120m with obstacles
Wind
Units of measurement
mph, km/h, m/s, knots
Resolution
1 mph, 1 km/h, 0.5 m/s, or 1 knots
Accuracy
±3 km/h
Measuring range
3 to 290 km/h
Measurement frequency
2.5 to 3 seconds
Wiring
12m length, max recommended 165m
Measurement principle
Wind buckets, Hall effect sensor
Wind direction
Resolution
16 points (22.5°) on compass rose, 1° digital display
Accuracy
±3°
Measuring range
0 to 360°
Measurement frequency
2.5 to 3 seconds
Measurement principle
Wind vane with potentiometer
Atmospheric pressure
Units of measurement
in Hg, mm Hg, hPa/mb
Resolution
0.01in Hg, 0.1 mm Hg, 0.1 hPa/mb
Accuracy
±1.0 hPa
Measuring range
540 to 1100 hPa
Measurement frequency
1 minute
Outside temperature
Units of measurement
°C or °F
Resolution
0.1
Accuracy
±0.3°C
Measuring range
-40°C to 65°C
Measurement frequency
10 to 12 seconds
Measurement principle
PN Junction Silicon Diode
Windchill
Resolution
1
Accuracy
±1
Measurement frequency
10 to 12 seconds
Measurement principle
Calculation, Osczevski formula (1995)
Inside temperature
Units of measurement
°C or °F
Resolution
0.1
Accuracy
±0.5°C
Measuring range
0 to 60°C
Measurement frequency
1 minute
Receiving console
Composition
UV-resistant ABS plastic
Measure
Temperature ; Humidity ; Atmospheric pressure
Power supply
AC Power Adapter, 5 VDC, 1000 mA, regulated
Size
245 mm x 156 mm x 41 mm
Weight
0.85 kg
Power supply autonomy
1 month (approx.)
Operating temperature
0 to 60°C
Current consumption
0.9 mA average, 30 mA peak, (add 120 mA for display lamps, add 0.125 mA for each optional wireless transmitter received by the console) at 4 - 6 VDC
Backup power supply
3 LR14 batteries (not included)
Display
LCD, backlit
Integrated Sensor Suite (ISS)
Composition
UV-resistant ABS, polypropylene
Measure
Temperature ; Humidity ; Wind speed ; Wind direction ; Rainfall ; Windchill ; Wind gusts
Power supply
solar panel, 10F accumulator, back-up battery
Power supply autonomy
8 months without sunlight - greater than 2 years depending on solar charging
Operating temperature
-40 to 65°C
Current consumption
0.14 mA (average), 30 mA (peak) at 4 to 6 VDC
Backup power supply
3V CR123 Lithium battery (not included)
Outdoor humidity
Units of measurement
% RH
Resolution
1%
Accuracy
±2%
Measuring range
1 to 100% RH
Measurement frequency
50 seconds to 1 minute
Measurement principle
Film capacitor element
Drift
less than 0.25% per year
Rainfall
Units of measurement
mm or inch
Resolution
0.2 mm or 0.01in
Accuracy
For rain rates up to 10in/hr (250 mm/hr): ±3% of total or ± one tip of the spoon (0.01in/0.2mm), whichever is greater.
Measurement frequency
20 to 24 seconds
Measurement principle
Tilting bucket
Rain receiving surface
214 cm2
Rainfall rate
Units of measurement
mm/h or in/h
Resolution
0.1 mm or 0.01 in/h
Accuracy
±5% for rain rates up to 10in/hr (250 mm/hr)
Measuring range
0 to 762 mm/h
Measurement frequency
20 to 24 seconds
Indoor humidity
Units of measurement
% RH
Resolution
1%
Accuracy
±2%
Measuring range
1 to 100% RH
Measurement frequency
1 minute
Dew point
Units of measurement
°C or °F
Resolution
1
Accuracy
±1.5°C
Measuring range
-76° to 54°C
Measurement frequency
10 à 12 seconds
Measurement principle
WMO Equation with respect to saturation of moist air over water
