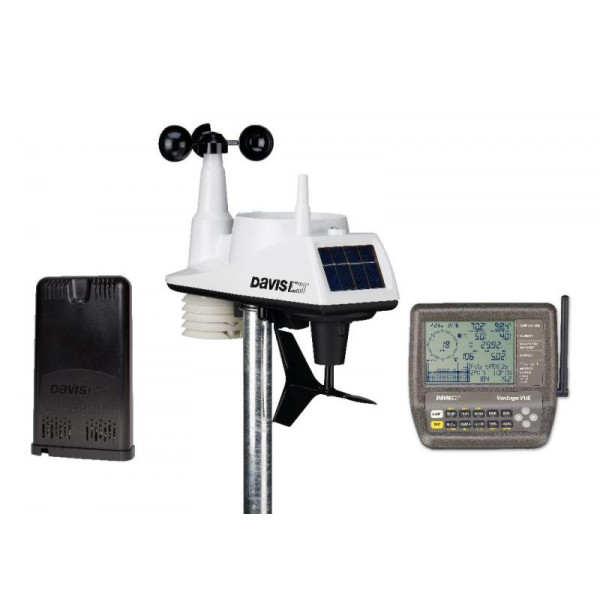

Vantage Vue Weather Station with WeatherLink Live Console

The Vantage Vue Weather Station + WeatherLink Live Console package gives you a connected weather station at an unbeatable price!
This package includes a Vantage Vue sensor suite from Davis Instruments and a WeatherLink Live connected console.
The Vantage Vue 6357OV Sensor Suite (ISS) is a complete suite for measuring all major weather parameters (temperature, humidity, wind speed and direction, and rainfall). It is self-sufficient in energy thanks to a solar panel and a back-up battery and communicates the data by radio wave to the console. The sensor suite can be located up to 300m from the console in view, generally up to 100 to 150m depending on the presence of obstacles. The ISS is very robust and can be mounted on a mast (tube). A dual sensor for measuring outside temperature and humidity is placed in a solar radiation shelter. The rain gauge is equipped with a tipping bucket system to measure precipitation. The wind vane can't be disconnected from the ISS.
The Vantage Vue console allows you to view your data directly on the display screen, as well as retrieve extremes and totals for previous days, months, and years.
The WeatherLink Live console allows you to connect your weather data to the Internet and view your data from anywhere with the weatherlink.com cloud and the WeatherLink mobile app available on Android and iOS. More info: WeatherLink Live Console
The Davis Vantage Vue + WeatherLink Live weather station comes with:
- A WeatherLink Live connected console.
- 6357 OV outdoor sensor suite (ISS).
- One 6351EU Vantage VUE console.
- A mounting kit.
- User's manual.
And allows you to measure:
- Indoor temperature - Resolution 0.1°C.
- Outdoor temperature - Resolution 0.1°C.
- Indoor humidity - Resolution: 1%.
- Outdoor humidity - Resolution: 1%.
- Atmospheric pressure - Resolution: 0.1 hPa.
- Heat index - Resolution 1°C.
- Dew point - Resolution 1°C.
- Precipitation - Resolution 0.25 mm.
- Feeling temperature - Resolution 1°C.
- Wind speed from 3 to 322 km/h - Resolution 1 km/h.
- Wind direction - Resolution 1°.
A second Vantage Vue Sensor Suite + WeatherLink Live console package is available, only there is no Vantage Vue console included.
- Miscellaneous
-
- Size
- 45.7 x 18.4 x 38.4 cm
- Weight
- 3.5 kg
- Warranty
- 2 ans
- Radio frequency
- 868.0 - 868.6 MHz FHSS, inférieur à 8mW
- Wireless range
- 300m à vue, 60 à 120m avec des obstacles
- Wind
-
- Units of measurement
- mph, km/h, m/s, Nœud
- Resolution
- 1 mph, 1 km/h, 0.5 m/s, ou 1 Nœud
- Accuracy
- ±3 km/h
- Measuring range
- 3 à 322 km/h
- Measurement frequency
- 2.5 à 3 secondes
- Measurement principle
- Godets à vent, capteur à effet Hall
- Wind direction
-
- Resolution
- 16 points (22,5°) sur la rose des vents, 1° à affichage numérique
- Accuracy
- ±3°
- Measuring range
- 0 à 360°
- Measurement frequency
- 2.5 à 3 secondes
- Measurement principle
- Girouette avec potentiomètre
- Atmospheric pressure
-
- Units of measurement
- in Hg, mm Hg, hPa/mb
- Resolution
- 0.01in Hg, 0.1 mm Hg, 0.1 hPa/mb
- Accuracy
- ±1.0 hPa
- Measuring range
- 540 à 1100 hPa
- Measurement frequency
- 1 minute
- Outside temperature
-
- Units of measurement
- °C ou °F
- Resolution
- 0.1
- Accuracy
- ±0.5°C
- Measuring range
- -40°C à 65°C
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- PN junction silicon diode
- Windchill
-
- Resolution
- 1
- Accuracy
- ±1
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- Calcul, formule de Osczevski (1995)
- Inside temperature
-
- Units of measurement
- °C ou °F
- Resolution
- 0.1
- Accuracy
- ±0.5°C
- Measuring range
- 0 à 60°C
- Measurement frequency
- 1 minute
- Receiving console
-
- Composition
- plastique ABS résistant aux UV
- Measure
- Temperature ; Humidity ; Atmospheric pressure
- Power supply
- Adaptateur secteur AC, 5 VDC, 300 mA, réglementé
- Size
- 190 x 146 x 114 mm
- Weight
- 0.67 kg
- Power supply autonomy
- 9 mois (approximativement)
- Operating temperature
- 0 à 60°C
- Current consumption
- 0,9 mA en moyenne, 30 mA en crête, (ajoutez 120 mA pour les lampes d'affichage, ajoutez 0,125 mA pour chaque émetteur sans fil optionnel reçu par la console) à 4 - 6 VDC
- Backup power supply
- 3 piles LR14 (non fournies)
- Display
- LCD, rétroéclairable
- Integrated Sensor Suite (ISS)
-
- Composition
- plastiques ABS et ASA résistants aux UV
- Measure
- Temperature ; Humidity ; Wind speed ; Wind direction ; Rainfall ; Windchill ; Wind gusts
- Power supply
- panneau solaire, accumulateur 10F, pile de secours
- Power supply autonomy
- 8 mois sans ensoleillement, plus de 2 ans en fonction de l'ensoleillement
- Operating temperature
- -40 à 65°C
- Current consumption
- 0.20 mA (moyenne), 30 mA (pic) à 3.3 VDC
- Backup power supply
- pile Lithium 3V CR123 (non fournie)
- Outdoor humidity
-
- Units of measurement
- % HR
- Resolution
- 1%
- Accuracy
- ±2%
- Measuring range
- 1 à 100% RH
- Measurement frequency
- 50 secondes à 1 minute
- Measurement principle
- Condensateur à film
- Drift
- inférieur à 0.25% par an
- Rainfall
-
- Units of measurement
- mm ou pouces
- Resolution
- 0.2 mm ou 0.01in
- Accuracy
- Pour les intensités de pluie jusqu'à 250 mm/h : ±4% du total ou ±0.2 mm au plus
- Measurement frequency
- 20 à 24 secondes
- Measurement principle
- Auget basculant
- Rain receiving surface
- 116 cm2
- Rainfall rate
-
- Units of measurement
- mm/h ou in/h
- Resolution
- 0.1 mm ou 0.01 in/h
- Accuracy
- ±5% pour les intensités inférieures à 250 mm/h
- Measuring range
- 0 à 762 mm/h
- Measurement frequency
- 20 à 24 secondes
- Indoor humidity
-
- Units of measurement
- % HR
- Resolution
- 1 % HR
- Accuracy
- ±2%
- Measuring range
- 1 à 100% HR
- Measurement frequency
- 1 minute
- Dew point
-
- Units of measurement
- °C ou °F
- Resolution
- 1
- Accuracy
- ±1.5°C
- Measuring range
- -76° à 54°C
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- L'équation de l'OMM à l'égard de la saturation de l'air humide sur l'eau
- WeatherLink Live Console
-
- Composition
- Plastique ABS robuste
- Measure
- Temperature ; Humidity ; Atmospheric pressure
- Power supply
- Adaptateur secteur, 5 VDC, 1000 mA
- Power supply autonomy
- piles : 5 jours
- Operating temperature
- 0 à 60°C
- Current consumption
- 100 mA, pic à 700 mA
- Backup power supply
- 4 piles AA (non incluses)
- Radio frequency
- 868.0 - 868.6 MHz FHSS
- Wireless range
- jusqu'à 300 m, 60 à 120 mètres à travers les murs et obstacles
- WIFI band
- 2,4 GHz 802.11b/g/n
