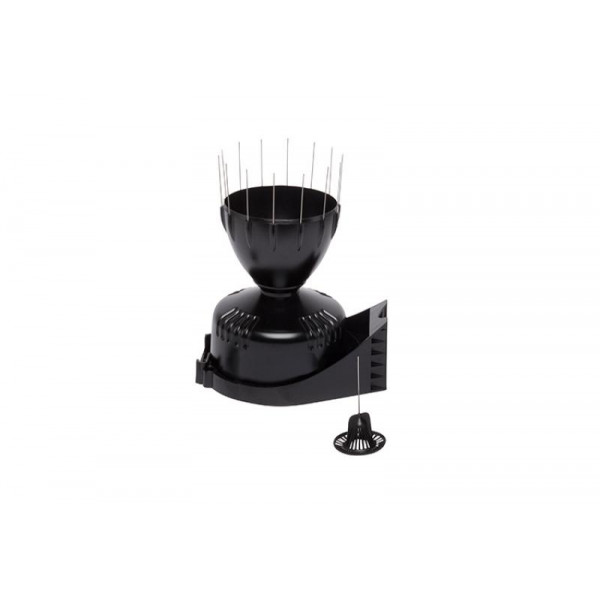

Trough rain gauge with integrated stand

Trough rain gauge with integrated stand

€129.00 (tax incl.) (€107.50 VAT excl.)
Delivery in 1 to 5 days

Rain gauge with integrated holder and attachment, bird spikes and aerodynamic cone. New single-auger system, high accuracy.

Reference
6466M
Available (3 Items)

This rain gauge uses Davis Instruments' new tipping bucket system. It also uses an aerodynamic cone to increase the accuracy of recordings in high winds.

It is equivalent to the 6464M but has the same mounting system as the Vantage Pro2 weather station rain gauge.

The rain gauge is supplied in a metric version (0.2 mm per tilt) and is fitted with a U-shaped flange that allows the rain gauge to be mounted on a 30 mm to 40 mm diameter pipe. It is possible to install the rain gauge on a wooden beam for example with the two bottom supports included. The rain gauge is equipped with the new version of the cone with bird spikes, a debris grid and a 12 meter long cable (with RJ11 connector).

This automatic rain gauge sends out an electrical pulse each time it is tilted. It uses a reed switch (ILS) triggered on tipping. It can be connected to many dataloggers or data acquisition systems that allow the processing of a pulse signal.

Data sheet (EN)

In english

Download (274.46KB)

6466M manual (EN)

In anglais

Download (800.88KB)
Miscellaneous
Resolution
0.2 mm
Accuracy
±3%, ±1 impulsion pour des intensités jusqu'à 250 mm/h
Size
23.5x26x28 cm (sans les piques anti-oiseaux)
Weight
1.5 kg
Output
Impulsions (ILS)
Wiring
câble 12 mètres, 4 conducteurs, 0.4 mm, embout RJ12
Measurement principle
auget basculant à contact magnétique
Rain receiving surface
214 cm²
