Ultrasonic Anemometer for Station - Davis Instruments
New sonic wind vane anemometer from Davis Instruments. Measurement of wind speed and direction without mechanical parts thanks to ultrasonic measurement technology.

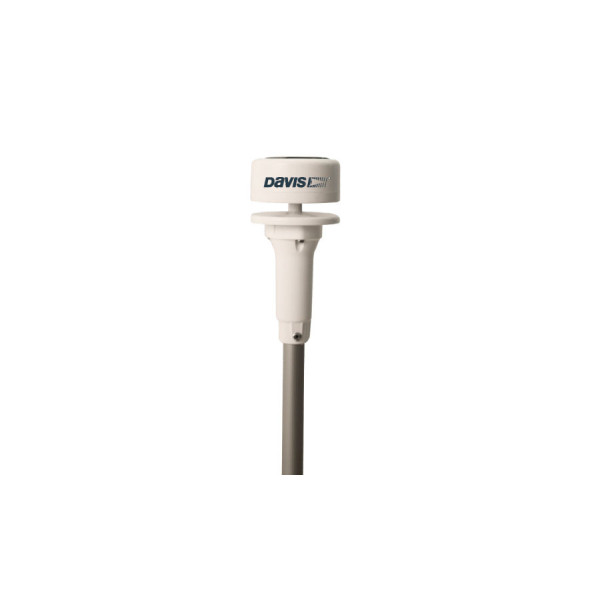

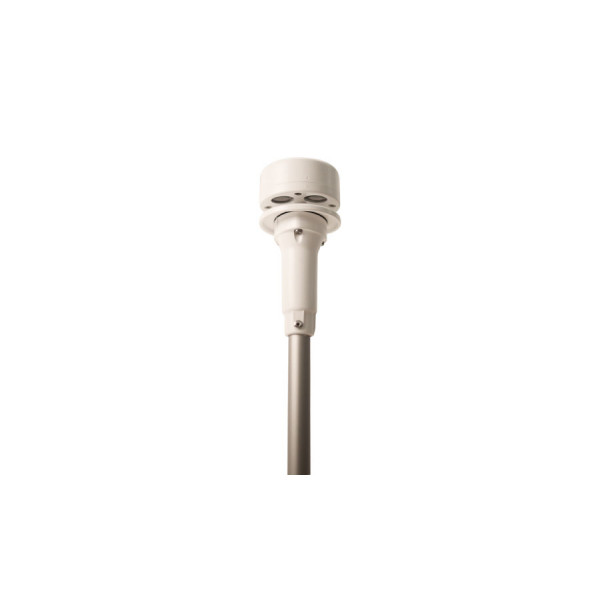

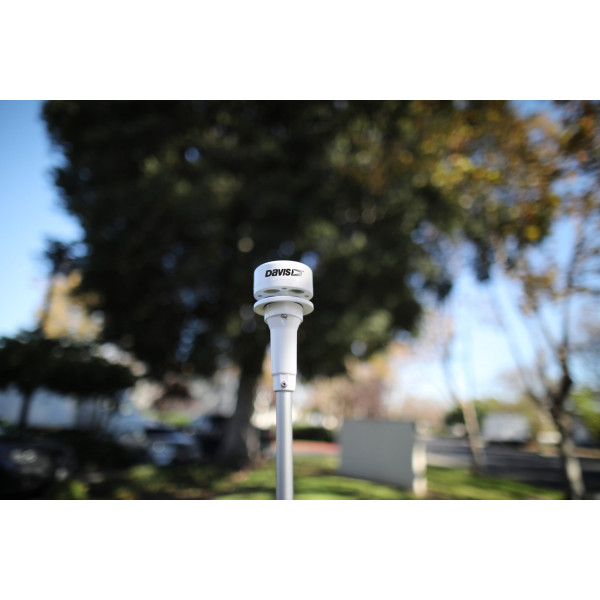

The Davis Instruments 6415 sonic or ultrasonic wind vane anemometer provides accurate wind speed and direction measurement without moving parts.
The speed measurement covers a range from 0 to 144 km/h with high accuracy.
This anemometer is used like the 6410 vane anemometer on Vantage Pro 2 weather stations or Enviromonitor Nodes.
When used with a 6332OV or 6331EU radio transmitter, the 6415 Ultrasonic Anemometer can be used as a remote anemometer for your 6152EU Vantage Pro 2 Wireless Weather Station or as an additional measurement point when using the 6100EU WeatherLink Live console.
Includes 12-meter cable.
Based on 4
reviews
-
t works great, but it has its drawbacks! The description states that the resolution of the anemometer is 0.1m/s, but the console or weatherlink displays 0.4m/s, just like a mechanical device.
-
A priori works correctly, to see over time. (Translated review)
-
I haven't had time to install it yet, but I guess it'll do! (Translated review)
-
It works very well. This anemometer catch a lot of gusts as well as light winds too.
- Miscellaneous
-
- Size
- 380 mm x 60 mm
- Weight
- 0.2 kg
- Operating temperature
- -15 to 55°C
- Wind
-
- Measure
- Wind speed
- Accuracy
- ±2 mph (2 kts, 3 km/h, 1 m/s) or ±4%, whichever is greater
- Measuring range
- 0 to 144 km/h
- Wind direction
-
- Measure
- Wind direction
- Resolution
- 16 points (22.5°) on compass rose, 1° on digital display
- Accuracy
- ±2° with wind above 11 km/h; ±4° if wind below 11km/h
