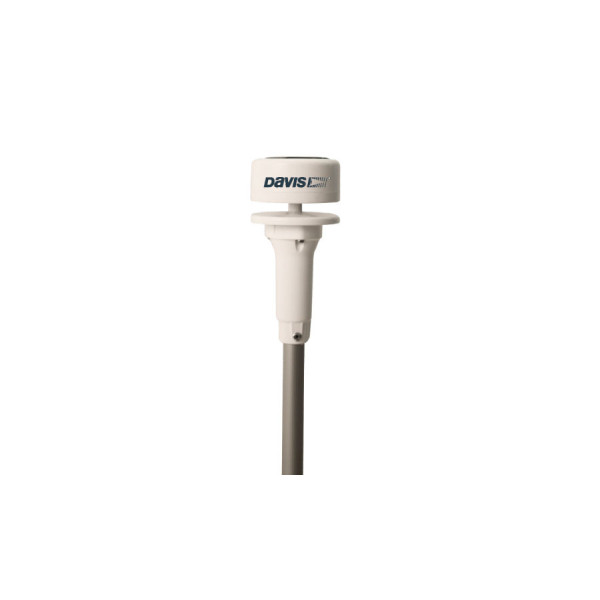

Ultrasonic Anemometer for Davis Instruments Station

€499.00 (tax incl.) (€415.83 VAT excl.)

Delivery in 1 to 5 days

New sonic wind vane anemometer from Davis Instruments. Measurement of wind speed and direction without mechanical parts thanks to ultrasonic measurement technology.

Reference

6415

Available

Description
Downloads

The Davis Instruments 6415 sonic or ultrasonic wind vane anemometer provides accurate wind speed and direction measurement without moving parts.

The speed measurement covers a range from 0 to 144 km/h with high accuracy.

This anemometer is used like the 6410 vane anemometer on Vantage Pro 2 weather stations or Enviromonitor Nodes.

When used with a 6332OV or 6331EU radio transmitter, the 6415 Ultrasonic Anemometer can be used as a remote anemometer for your 6152EU Vantage Pro 2 Wireless Weather Station or as an additional measurement point when using the 6100EU WeatherLink Live console.

Includes 12-meter cable.

Manual (EN) Anémomètre à ultrason pour station Davis Instruments

Download (1.44M)

Tecnical sheet (EN) Anémomètre à ultrason pour station Davis Instruments

Download (679.3k)

Data sheet

Miscellaneous

Size: 380 mm x 60 mm
Weight: 0.2 kg
Operating temperature: -15 to 55°C

Wind

Measure: Wind speed
Accuracy: ±2 mph (2 kts, 3 km/h, 1 m/s) or ±4%, whichever is greater
Measuring range: 0 to 144 km/h

Wind direction

Measure: Wind direction
Resolution: 16 points (22.5°) on compass rose, 1° in numeric display
Accuracy: ±2 degrees at wind speeds ≥ 7 mph (6 kts, 110 km/h, 3 m/s) ±4 degrees at wind speeds < 7 mph (6 kts, 110 km/h, 3 m/s)
