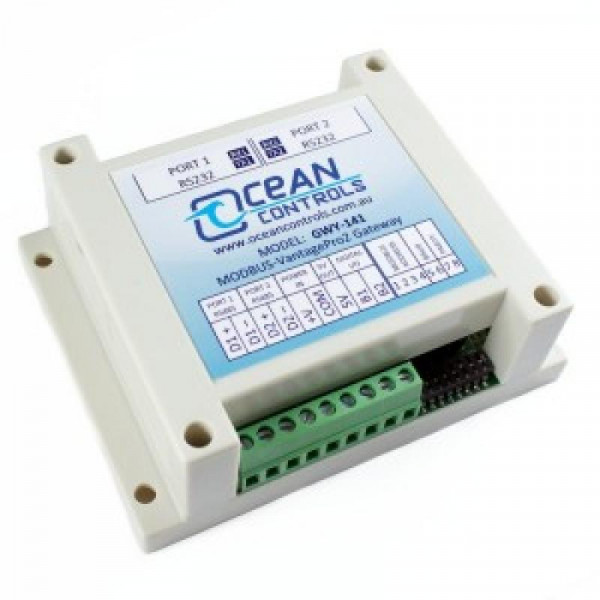

Modbus Gateway for Vantage Pro2

Modbus Gateway for Vantage Pro2

€240.00 (tax incl.) (€200.00 VAT excl.)

The Modbus interface for Vantage Pro2 GWY-141 allows easy connection of a PLC (Programmable Logic Controller), RTU (Remote Terminal Unit), or SCADA (Supervisory Control and Data Acquisition) system to a Davis Instruments Vantage Pro2 weather station.

Reference
GWY-141
Preorder

The Modbus interface for Vantage Pro2 weather stations allows you to easily connect a PLC (Programmable Logic Controller), RTU (Remote Terminal Unit), or SCADA system to a Davis Instruments Vantage Pro2 weather station.

Using the MODBUS protocol, your PLC can monitor weather parameters and take automation actions based on wind speed, wind direction, temperature, and many other variables.

Compatible weather stations:

The GWY-141 Modbus interface is compatible with the following Davis Instruments products associated with a WeatherLink SERIE 6510SER data logger.

  • Vantage Pro2 cable 6152CEU
  • Vantage Pro2 Plus cable 6162CEU
  • Vantage Pro2 Wireless 6152EU
  • Vantage Pro2 Plus Wireless 6162EU
  • Vantage Pro2 with active ventilation 6153EU
  • Vantage Pro2 Plus with Active Fan 6163EU
  • 6316EU Wireless Weather Envoy Console (with 6322OV sensor suite)
  • 6316CEU Cabled Weather Envoy Console (with 6322C sensor suite)

The interface connects to the station using the WeatherLink datalogger and appears on the Modbus network in Modbus RTU slave mode. This allows your PLC to monitor and take action based on wind speed, wind direction, temperature and many other parameters.

Technical Features

  • Conversion to simple metric units
  • Connects to the weather station via RS232 port 2 (19,200 baud)
  • Connects to Modbus RTU network via RS232 or RS485 ports
  • Modbus slave address selection: 1 to 16
  • Modbus RTU baud rate selection: 2400, 4800, 9600 or 19200 baud
  • Modbus RTU parity selection: None, Odd, Even
  • Transferred variables :
    • Outdoor temperature
    • Outdoor humidity
    • Wind speed
    • Precipitation
    • Atmospheric pressure
    • Indoor temperature (console)
    • Indoor humidity (console)
    • Solar radiation
    • Evapotranspiration
    • Daily rainfall
    • Weekly rainfall
    • Monthly rainfall
  • Communication status OK recorded when the communication between the Weather Station and the Gateway is OK
  • The unit can be screwed to a panel or a clip for mounting to a DIN rail.
  • Compatible equipment: See table in PDF documentation
  • Standard: CE

Manual GWY141 (FR)

Download (583.98KB)

Manual GWY-141 v5.6 (EN)

Download (939.2KB)
Miscellaneous
Power supply
8-28 V CC, 100 mA
Size
11.5 x 9.0 x 4.0 cm
Weight
0.2 kg
