Wireless CO2, Temp/Hum datalogger with display

€889.00 (tax incl.) (€740.83 VAT excl.)

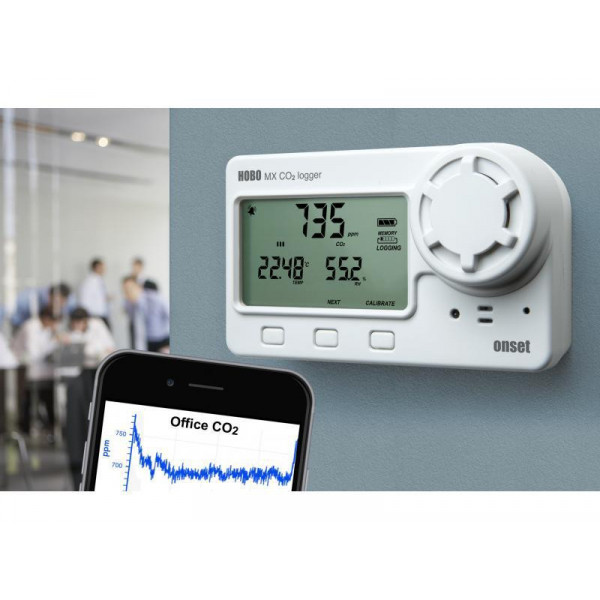

The HOBO® MX1102 logger records and transmits temperature, relative humidity and CO2 levels in indoor environments using its built-in sensors. This low power Bluetooth® logger is designed for wireless communication with a mobile device and also supports a USB connection.

Reference

MX1102

Preorder

Description
Downloads

The HOBO® MX1102 logger records and transmits temperature, relative humidity and CO2 levels in indoor environments with its integrated sensors.

This low-power Bluetooth® logger is designed for wireless communication with a mobile device and also supports a USB connection. You can easily set up the logger, read it and view the plotted data using the HOBOmobile® app on your phone or tablet or the HOBOware software on your computer.

The logger can calculate minimum, maximum, mean and standard deviation statistics and can be configured to trigger audible or visual alarms at thresholds you specify.

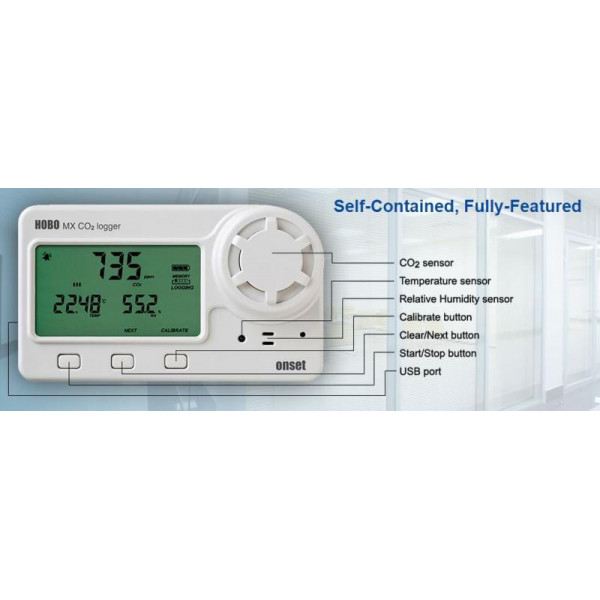

This compact data logger also features an LCD display that shows real-time readings, recording mode, battery level, memory used, and more.

Product sheet MX1102 (FR)

Download (232.46KB)

First use manual MX1102 (FR)

Download (178.86KB)

Data sheet

Miscellaneous

Power supply: 4 x 1.5V AA batteries (user replaceable) or via USB cable
Size: 7.61 x 12.95 x 4.78 cm
Weight: 267.4 g
External power supply: USB
Power supply autonomy: 6 months with recording interval of 5 minutes or slower
Operating temperature: 0°C to 50°C (non-condensing)
Protection: IP50
Bluetooth® range: approx. 30.5 m line of sight
Display: visible from 0°C to 50°C, LCD may be slower or no longer display for temperatures outside this range
Communication: Bluetooth
Memory: 128 KB (approx. 84,600 records)
Recording interval: 1 second to approx. 18 hours

Temperature

Measure: Temperature
Resolution: 0.024°C at 25°C
Accuracy: ±0.21°C
Measuring range: 0°C to 50°C
Drift: less than 0.1°C per year
Response time: 12 minutes at 90% in air at 1 m/s

Humidity

Measure: Humidity
Resolution: 0.01%
Accuracy: ±2% from 20% to 80% typical to a maximum of ±4.5% including hysteresis at 25°C
Measuring range: 1 to 70% humidity when the CO2 sensor is active (non-condensing), 1 to 90% when it is deactivated.
Drift: less than 1% per year on average
Response time: 1 minute at 90% in air at 1 m/s

CO2

Measure: Carbon dioxide (CO2)
Accuracy: ±50 ppm ±5% at reading at 25°C (77°F), less than 70% humidity and 1013 mbar
Measuring range: 0 to 5 000 ppm
Measurement principle: non-dispersed infrared absorption (NDIR)
Response time: 1 minute at 90% in air at 1 m/s
