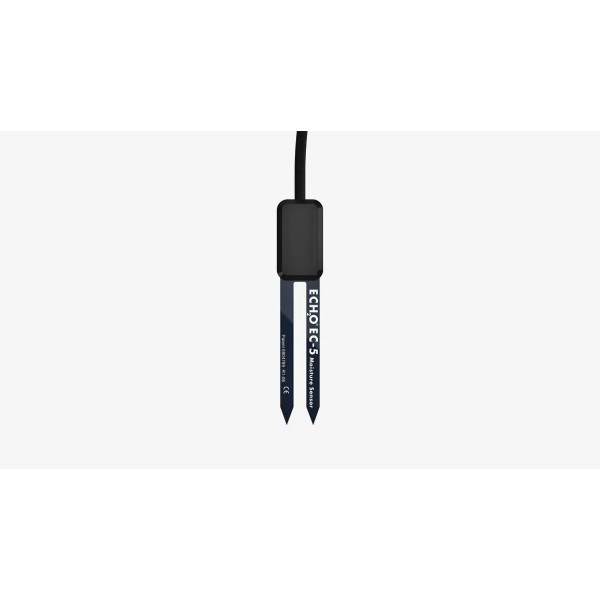

Water volumetric content probe ECH20 EC-5
Delivery in 1 to 5 days in Europa
The probe EC-5 by MeterGroup measures the volumetric water content in the soil. The measure is made in the frequential domain, at 70MHz. With respect to the 10HS probe, it's more compact and measures in a soil volume of 0.2L.
- Miscellaneous
-
- Size
- 8.9x1x8x0.7cm
- External power supply
- 2.6 - 3.5VDC
- Operating temperature
- -40 - 60°C
- Current consumption
- 10mA
- Wiring
- 5m by default
- Soil moisture
-
- Measure
- Soil Moisture
- Resolution
- 0.001 m³/m³
- Accuracy
- ±0.03 m³/m³ or ±0.02 m³/m³ depending on calibration
- Measuring range
- 0 - 100%
- Output
- 10%–50% of the excitation signal (in mV)
- Trigger threshold
- 10ms
- Sensor
- 5cm
