Cabled Vantage Pro 2 Plus Weather Station

Cabled Vantage Pro 2 Plus Weather Station

€1,249.00 (tax incl.) (€1,040.83 VAT excl.)
Delivery in 1 to 5 days in Europa

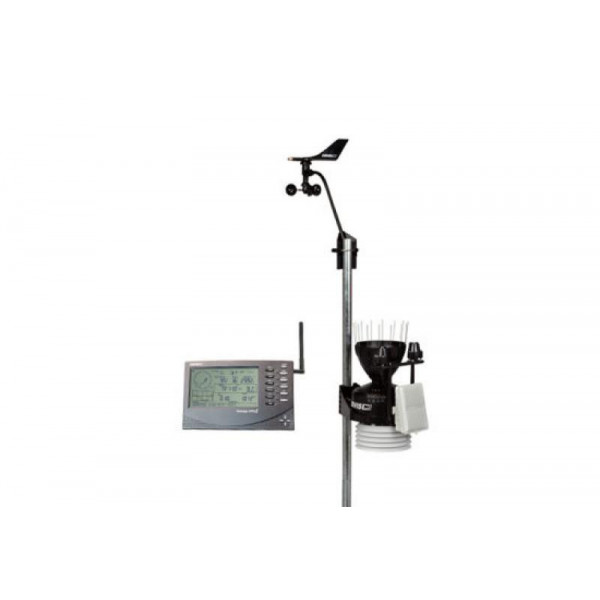

The Davis Instruments Vantage Pro 2 Plus cabled weather station, part number 6162CEU, includes a versatile sensor package (rain gauge, temperature and humidity sensor, pyranometer, UV sensor, and anemometer) in a single unit and a backlit LCD console. Possibility to add an active ventilation shelter.

Reference
6162CEU
Available (2 Items)

Davis Intruments complete weather station, part number 6162CEU. The connection between the outdoor sensors (ISS) and the console is made with a 30 meter long cable. The console has a large backlit LCD display and can be mounted on a wall or placed on a table or shelf. The console allows the user to view real-time weather conditions, extremes (max and min), and graphs of the various variables. It is also possible to set alarms and connect the console to a computer (with the WeatherLink interface not included).

The ISS is very robust and can be mounted on a mast (tube) or on a wooden pole. A dual sensor for measuring outdoor temperature and humidity is placed in a standardised radiation shelter. The rain gauge is equipped with a tipping bucket system for measuring precipitation and bird spikes. The wind vane anemometer can be detached from the ISS and installed on a roof, for example, with its 12-metre cable. The ISS is equipped with a UV sensor to measure the UV index and a pyranometer to measure solar radiation and evapotranspiration.

With a transmission interval of 2.25 seconds, the anemometer can easily record the strongest wind gusts.

NEW: - Single-auger rain gauge system for improved accuracy and stability

The Davis Vantage Pro 2 6162CEU pro weather station comes with:

  • An LCD console and power supply.
  • Outdoor sensor suite (ISS).
  • A wind vane with 12 meters of cable
  • UV sensor
  • A pyranometer
  • A 30 metre cable (console - ISS link)
  • A fixing kit
  • An user manual

And allows to measure:

  • Indoor temperature - Resolution 0.1°C.
  • Outdoor temperature - Resolution 0.1°C.
  • Indoor humidity - Resolution: 1%.
  • Outdoor humidity - Resolution: 1%.
  • Atmospheric pressure - Resolution: 0.1 hPa.
  • Heat index - Resolution 1°C.
  • Dew point - Resolution 1°C.
  • Precipitation - Resolution 0.2 mm.
  • Feeling temperature - Resolution 1°C.
  • Wind speed from 3 to 241 Km/h - Resolution 1 Km/h.
  • Wind direction - Resolution 1°.
  • Potential evapotranspiration (ETP)
  • Solar radiation in W/m² - Resolution 1 W/m².
  • UV index - Resolution 0.1.
  • UV dose - Resolution 0.1 MED < 20 - 1 MED > 20.

It is possible to add active ventilation to the shelter.

It is also possible to add a datalogger to the console. You will be able to store more than 2500 data on this datalogger and transmit them to your computer thanks to the WeatherLink software that is provided with the datalogger.

Console Manual (FR/ES/DE)

Manual in french/spanish/german

Download (4.41MB)

Manual ISS (FR/DE/ES)

Manual in french/spanish/german

Download (2.17MB)

Manuel ISS VP2 (EN)

Manuel en anglais

Download (3.08MB)

VP2 Console manual (EN)

Manual in english

Download (3.56MB)
Miscellaneous
Size
445 x 264 x 406 mm
Weight
6 kg
Warranty
2 ans
Length
câble de 30m fourni, max possible 300 m
Wind
Units of measurement
mph, km/h, m/s, Nœud
Resolution
1 mph, 1 km/h, 0.5 m/s, ou 1 Nœud
Accuracy
±3 km/h
Measuring range
3 à 290 km/h
Measurement frequency
2.5 à 3 secondes
Wiring
12m de longueur, max recommandé 165m
Measurement principle
Godets à vent, capteur à effet Hall
Wind direction
Resolution
16 points (22,5°) sur la rose des vents, 1° à affichage numérique
Accuracy
±3°
Measuring range
0 à 360°
Measurement frequency
2.5 à 3 secondes
Measurement principle
Girouette avec potentiomètre
Atmospheric pressure
Units of measurement
in Hg, mm Hg, hPa/mb
Resolution
0.01in Hg, 0.1 mm Hg, 0.1 hPa/mb
Accuracy
±1.0 hPa
Measuring range
540 à 1100 hPa
Measurement frequency
1 minute
UV Index
Resolution
0.1
Accuracy
± 5% de l'échelle totale
Measuring range
Indice 0 à 16
Measurement frequency
50 sec à 1 min (5 minutes lorsqu'il fait sombre)
Drift
jusqu'à ± 2% par an
Outside temperature
Units of measurement
°C ou °F
Resolution
0.1
Accuracy
±0.3°C
Measuring range
-40°C à 65°C
Measurement frequency
10 à 12 secondes
Measurement principle
Diode à jonction PN de silicone
Windchill
Resolution
1
Accuracy
±1
Measurement frequency
10 à 12 secondes
Measurement principle
Calcul, formule de Osczevski (1995)
Inside temperature
Units of measurement
°C ou °F
Resolution
0.1
Accuracy
±0.5°C
Measuring range
0 à 60°C
Measurement frequency
1 minute
Receiving console
Composition
plastique ABS résistant aux UV
Measure
Temperature ; Humidity ; Atmospheric pressure
Power supply
Adaptateur secteur AC, 5 VDC, 300 mA, réglementé
Size
245 mm x 156 mm x 41 mm
Weight
0.85 kg
Power supply autonomy
1 mois (approximativement)
Operating temperature
0 à 60°C
Current consumption
0,9 mA en moyenne, 30 mA en crête, (ajoutez 120 mA pour les lampes d'affichage, ajoutez 0,125 mA pour chaque émetteur sans fil optionnel reçu par la console) à 4 - 6 VDC
Backup power supply
3 piles LR14 (non fournies)
Display
LCD, rétroéclairable
Integrated Sensor Suite (ISS)
Composition
plastiques ABS et ASA résistants aux UV
Measure
Temperature ; Humidity ; Wind speed ; Wind direction ; Rainfall ; UV ; Solar radiation ; Windchill ; Wind gusts
Power supply autonomy
8 mois sans ensoleillement, plus de 2 ans en fonction de l'ensoleillement
Operating temperature
-40 à 65°C
Current consumption
5 mA (en moyenne) de 4 à 6 VDC pour l'ISS seulement. 10 mA en moyenne entre la console et l'ISS
UV radiation dose
Units of measurement
MEDs
Resolution
0.1 MEDs à 19.9 MEDs, tous les 1 MED au dessus de 19.9 MEDS
Accuracy
±5% pour le total journalier
Measurement frequency
50 sec à 1 min
Drift
jusqu'à ± 2% par an
Outdoor humidity
Units of measurement
% HR
Resolution
1%
Accuracy
±2%
Measuring range
1 à 100% RH
Measurement frequency
50 secondes à 1 minute
Measurement principle
Condensateur à film
Drift
inférieur à 0.25% par an
Solar radiation
Units of measurement
W/m²
Resolution
1 W/m²
Accuracy
± 5% de l'échelle totale
Measuring range
0 à 1800 W/m2
Drift
jusqu'à ± 2% par an
Rainfall
Units of measurement
mm ou pouces
Resolution
0.2 mm ou 0.01in
Accuracy
Pour les intensités de pluie jusqu'à 100 mm/h : ±3% du total ou +0.25 mm au plus
Measurement frequency
20 à 24 secondes
Measurement principle
Auget basculant
Rain receiving surface
214 cm2
Rainfall rate
Units of measurement
mm/h ou in/h
Resolution
0.1 mm ou 0.01 in/h
Accuracy
±5% pour les intensités inférieures à 250 mm/h
Measuring range
0 à 762 mm/h
Measurement frequency
20 à 24 secondes
Indoor humidity
Units of measurement
% HR
Resolution
1 % HR
Accuracy
±2%
Measuring range
1 à 100% HR
Measurement frequency
1 minute
Evapotranspiration
Units of measurement
mm ou pouces
Resolution
0.1 mm ou 0.01in
Accuracy
0.25 mm ou ±5%
Measuring range
Journalier jusqu'à 832,2 mm, mensuel et annuel jusqu'à 1999.9 mm
Measurement frequency
1 heure
Measurement principle
Equation de Penman modifiée, telle que mise en œuvre par CIMIS (California Irrigation Management Information System)
Dew point
Units of measurement
°C ou °F
Resolution
1
Accuracy
±1.5°C
Measuring range
-76° à 54°C
Measurement frequency
10 à 12 secondes
Measurement principle
L'équation de l'OMM à l'égard de la saturation de l'air humide sur l'eau
