Vantage Pro 2 wired Weather Station

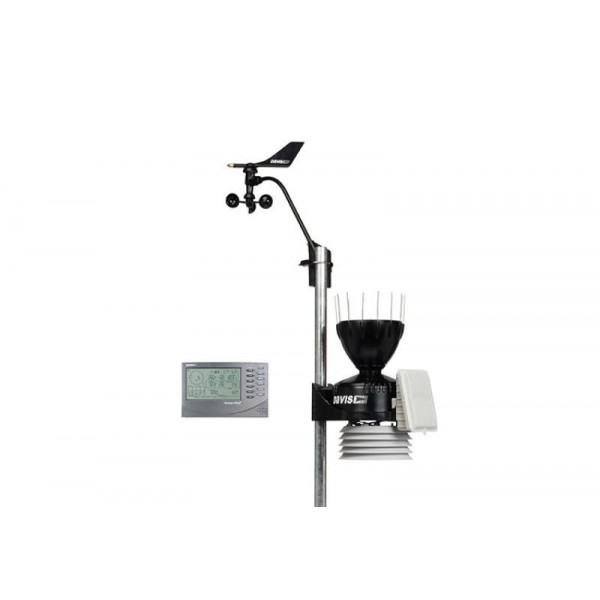

The Davis Instruments Vantage Pro 2 cabled weather station, part number 6152CEU, includes a multi-purpose sensor package (rain gauge, temperature and humidity sensor, and anemometer) in a single unit and a backlit LCD console. Solar sensors and an active ventilation shelter can be added.
Davis Instruments complete weather station Vantage Pro 2, part number 6152CEU. The connection between the outdoor sensors (ISS) and the console is made with a 30 meter long cable. The console is equipped with a large backlit LCD display and can be mounted on a wall or placed on a table or shelf. The console allows the user to view real-time weather conditions, extremes (max and min), and graphs of the various variables. It is also possible to set alarms and connect the console to a computer (with the WeatherLink datalogger not supplied).
The ISS is very robust and can be mounted on a mast (tube) or on a wooden pole. A dual sensor for measuring outdoor temperature and humidity is placed in a standardised radiation shelter. The rain gauge is equipped with a tipping bucket system for measuring precipitation and bird spikes. The wind vane anemometer can be detached from the ISS and installed on a roof, for example, with its 12-metre cable.
With a transmission interval of 2.25 seconds, the anemometer can easily record the strongest wind gusts.
NEW: - Single-auger rain gauge system for improved accuracy and stability
The Davis Vantage Pro 2 6152CEU weather station comes with:
- An LCD console and power supply.
- Outdoor sensor suite (ISS).
- A wind vane with 12 meters of cable
- A 30 metre cable (console - ISS link)
- A fixing kit
- An instruction manual
And allows to measure:
- Indoor temperature - Resolution 0.1°C.
- Outdoor temperature - Resolution 0.1°C.
- Indoor humidity - Resolution: 1%.
- Outdoor humidity - Resolution: 1%.
- Atmospheric pressure - Resolution: 0.1 hPa.
- Heat index - Resolution 1°C.
- Dew point - Resolution 1°C.
- Precipitation - Resolution 0.2 mm.
- Feeling temperature - Resolution 1°C.
- Wind speed from 3 to 241 km/h - Resolution 1 km/h.
- Wind direction - Resolution 1°.
It is also possible to add an active ventilation 7747, a UV sensor 6490 or a pyranometer 6450 (solar radiation).
It is also possible to add a datalogger to the console. You can store more than 2500 data on the datalogger and transmit them to your computer using the WeatherLink software that is supplied with the datalogger.
- Miscellaneous
-
- Size
- 445 mm x 264 mm x 406 mm
- Weight
- 5.9 kg
- Warranty
- 2 ans
- Length
- câble de 30m fourni, max possible 300 m
- Wind
-
- Units of measurement
- mph, km/h, m/s, Nœud
- Resolution
- 1 mph, 1 km/h, 0.5 m/s, ou 1 Nœud
- Accuracy
- ±3 km/h
- Measuring range
- 3 à 290 km/h
- Measurement frequency
- 2.5 à 3 secondes
- Wiring
- 12m de longueur, max recommandé 165m
- Measurement principle
- Godets à vent, capteur à effet Hall
- Wind direction
-
- Resolution
- 16 points (22,5°) sur la rose des vents, 1° à affichage numérique
- Accuracy
- ±3°
- Measuring range
- 0 à 360°
- Measurement frequency
- 2.5 à 3 secondes
- Measurement principle
- Girouette avec potentiomètre
- Atmospheric pressure
-
- Units of measurement
- in Hg, mm Hg, hPa/mb
- Resolution
- 0.01in Hg, 0.1 mm Hg, 0.1 hPa/mb
- Accuracy
- ±1.0 hPa
- Measuring range
- 540 à 1100 hPa
- Measurement frequency
- 1 minute
- Outside temperature
-
- Units of measurement
- °C ou °F
- Resolution
- 0.1
- Accuracy
- ±0.3°C
- Measuring range
- -40°C à 65°C
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- Diode à jonction PN de silicone
- Windchill
-
- Resolution
- 1
- Accuracy
- ±1
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- Calcul, formule de Osczevski (1995)
- Inside temperature
-
- Units of measurement
- °C ou °F
- Resolution
- 0.1
- Accuracy
- ±0.5°C
- Measuring range
- 0 à 60°C
- Measurement frequency
- 1 minute
- Receiving console
-
- Composition
- plastique ABS résistant aux UV
- Measure
- Temperature ; Humidity ; Atmospheric pressure
- Power supply
- Adaptateur secteur AC, 5 VDC, 300 mA, réglementé
- Size
- 245 mm x 156 mm x 41 mm
- Weight
- 0.85 kg
- Power supply autonomy
- 1 mois (approximativement)
- Operating temperature
- 0 à 60°C
- Current consumption
- Moyenne de 5 mA pour la console uniquement, moyenne de 10 mA pour la console et l'ISS
- Backup power supply
- 3 piles LR14 (non fournies)
- Display
- LCD, rétroéclairable
- Integrated Sensor Suite (ISS)
-
- Composition
- plastiques ABS et ASA résistants aux UV
- Measure
- Temperature ; Humidity ; Wind speed ; Wind direction ; Rainfall ; Windchill ; Wind gusts
- Power supply
- panneau solaire, accumulateur 10F, pile de secours
- Operating temperature
- -40 à 65°C
- Current consumption
- 5 mA (en moyenne) de 4 à 6 VDC pour l'ISS seulement. 10 mA en moyenne entre la console et l'ISS
- Outdoor humidity
-
- Units of measurement
- % HR
- Resolution
- 1%
- Accuracy
- ±2%
- Measuring range
- 1 à 100% RH
- Measurement frequency
- 50 secondes à 1 minute
- Measurement principle
- Condensateur à film
- Drift
- inférieur à 0.25% par an
- Rainfall
-
- Units of measurement
- mm ou pouces
- Resolution
- 0.2 mm ou 0.01in
- Accuracy
- Pour les intensités de pluie jusqu'à 100 mm/h : ±3% du total ou +0.25 mm au plus
- Measurement frequency
- 20 à 24 secondes
- Measurement principle
- Auget basculant
- Rain receiving surface
- 214 cm2
- Rainfall rate
-
- Units of measurement
- mm/h ou in/h
- Resolution
- 0.1 mm ou 0.01 in/h
- Accuracy
- ±5% pour les intensités inférieures à 250 mm/h
- Measuring range
- 0 à 762 mm/h
- Measurement frequency
- 20 à 24 secondes
- Indoor humidity
-
- Units of measurement
- % HR
- Resolution
- 1 % HR
- Accuracy
- ±2%
- Measuring range
- 1 à 100% HR
- Measurement frequency
- 1 minute
- Dew point
-
- Units of measurement
- °C ou °F
- Resolution
- 1
- Accuracy
- ±1.5°C
- Measuring range
- -76° à 54°C
- Measurement frequency
- 10 à 12 secondes
- Measurement principle
- L'équation de l'OMM à l'égard de la saturation de l'air humide sur l'eau
